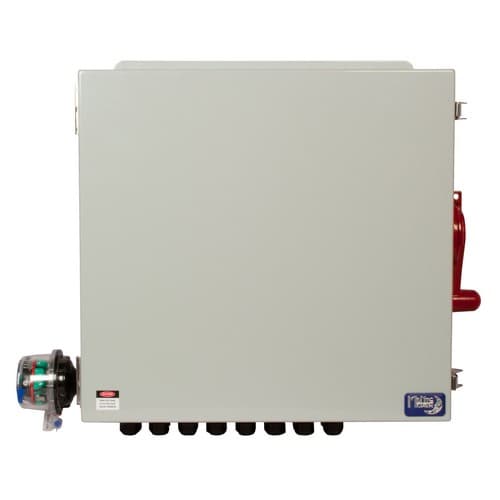

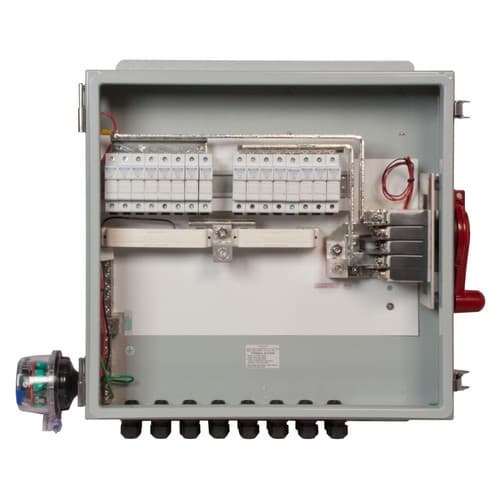

Midnite Solar, MNPV16HV-DISCO 4X, 16 Input Disconnecting Combiner

  • Model: MNPV16HV-DISCO 4X
  • Manufactured by: Midnite Solar
  • Condition: New
  • Estimated Delivery: Mar 30th - Apr 5th
  • In Stock
Price:

$2,287.19 $1,759.38

Manufacturer Info

MNPV16HV Disco 4X PV Disconnecting Combiner, 5 poles, 100 amp load break rated or 175 amps load break rated for busbars and switch, 600 volt max.

The MNPV16HV DISCO 4X's red handled is LOCKABLE IN THE OFF POSITION!
  • Convertible configuration (field configurable)
  • Sixteen strings combined for up to 230 Amps single pole disconnect)
  • 8 + 8 strings, separate PV+ and PV- for use with 2 inverters (2 pole 115A disconnect)
  • 8 strings plus, 8 strings minus for use with non-isolated inverters (2 pole 115A 600VDC disconnect)
  • Disconnect switch has built in shunt trip with positive feedback
  • See thru deadfront & color coded busbar guards included
  • Birdhouse compatible
  • Optional PV connected power supply
  • Load Break Rated
  • Type 4X aluminum enclosure (no rust, won't turn to dust) conduit/strain relief holes punched
  • 90o C connections
  • Fuseholders (MNTS) installed
  • 15a/600v fuses installed
  • Meets 2014 NEC 690.12
  • Warranty - 5 yrs.
  • Listed by ETL for US & Canada
  • Made in the USA
  • Disconnecting Combiner Brochure | Download
  • Rapid Shutdown Brochure | Download
  • ATM MNPV8HV and MNPV16HV Disco | Download
  • MNPSB Instructions | Download
  • HV Disconnecting Combiner Manual | Download
  • MNBirdhouse | Download
Hardware Includes:
  • One MNSPD-600 (Surge Protection Device)
  • Sixteen 1/2" strain reliefs (MNSR-1000)
  • Twenty 1/2" LOCKNUTS
  • Fourteen HOLE PLUGS with Gaskets (MNHOLE PLUG 1/2)
  • Two 10-32 X 7/8" SCREWS
  • Two 10-32 X 3/6" SCREWS
  • Two 3/8 16 X 7/8" BOLTS
  • Twelve 10-32 KEPS NUT
  • One TERMINAL PIN 18-22 AWG.
  • One TERMINAL PIN 10-12 AWG.
  • One WHITE INSULATOR
  • One BLUE WRENCH (MNWRENCH)
The difference between the regular Disco combiners and the DLTL version is that the MNPV16HV-Disco-4X is made for a single 16 string inverter, 2 8 sting inverters or one 8 string transformerless where as the DLTL is set up for 8 strings in and 2 strings out for Dual MPPT on transformerless
