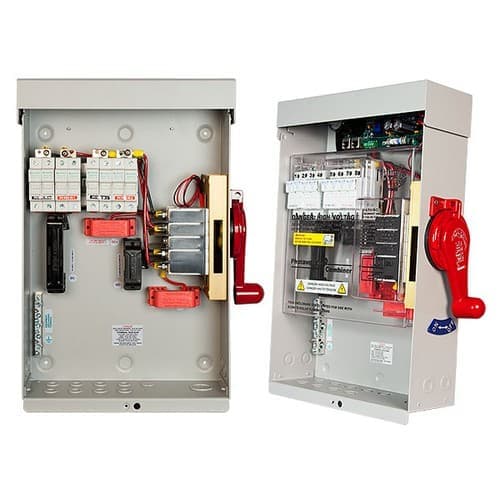

SMA requested MidNite Solar to design and build these DLTL combiners. There are 4 strings entering the combiner with 2 separate strings out. Specifically designed for the new dual channel MPPT on transformer-less inverters.
The MNPV8HV-DLTL 3R's red handled is LOCKABLE IN THE OFF POSITION!
SHOWN WITH OPTIONAL MNDISCOPSB (POWER SUPPLY BOARD).
4 strings into the combiner with 2 separate 30 amp strings out. Specifically designed for the new dual channel MPPT on transformer-less inverters. This configuration will break the Positive and Negative of 2 separate 600vdc strings.
The difference between the regular Disco combiner and the DLTL version is that the MNPV8HV-Disco-4X is made for a single 8 string inverter, two 4 string inverters or one 4 string transformerless where as the DLTL is set up for 4 strings in and 2 strings out for Dual MPPT on transformerless
The MNPV8HV-DLTL 3R's red handled is LOCKABLE IN THE OFF POSITION!
SHOWN WITH OPTIONAL MNDISCOPSB (POWER SUPPLY BOARD).
4 strings into the combiner with 2 separate 30 amp strings out. Specifically designed for the new dual channel MPPT on transformer-less inverters. This configuration will break the Positive and Negative of 2 separate 600vdc strings.
The difference between the regular Disco combiner and the DLTL version is that the MNPV8HV-Disco-4X is made for a single 8 string inverter, two 4 string inverters or one 4 string transformerless where as the DLTL is set up for 4 strings in and 2 strings out for Dual MPPT on transformerless
- Rapid shutdown system compliant
- Birdhouse compatible
- Type 3R aluminum enclosure (No Rust)
- Number of Fuse Holders (MNTS) installed - 8
- 8 - 15 amp fuses installed
- Current Rating - 60A
- Max. Output Wire Size - 2/0
- Output Circuits - 2
- 90 degree C connections
- See through dead front and color coded bus bar guards
- #10 AWG wire internally
- Meets 2014 NEC 690.12
- Warranty - 5 yrs.
- Listed by ETL for US & Canada
- Made in the USA
- Rapid Shutdown Brochure | Download
- MNPSB Instructions | Download
- HV Disconnecting Combiner Manual | Download
- MNBirdhouse | Download
- Four - Strain Reliefs
- Four - 1/2" LOCKNUTS
- One BLUE WRENCH (MNWRENCH)
