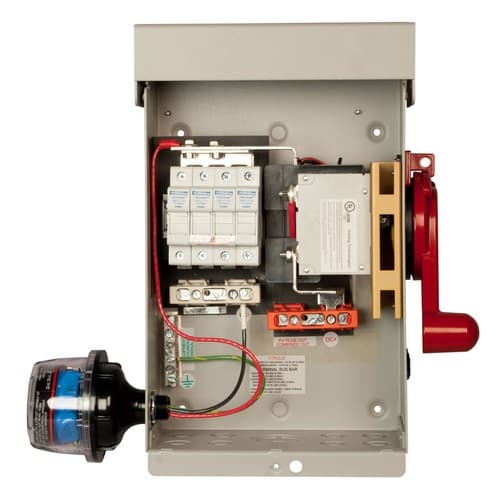

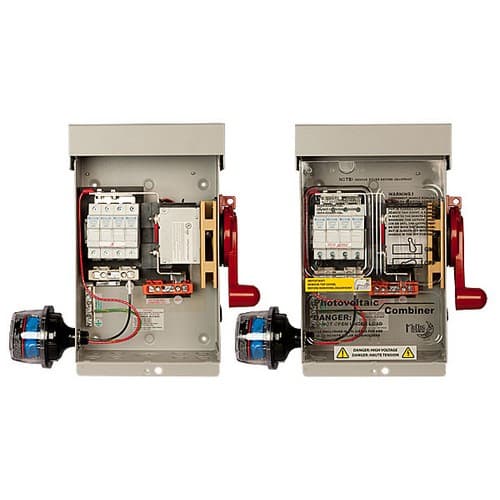

Midnite Solar, MNPV4HV-DISCO 3R-DLX, 4 Input Disconnecting Combiner Midnite Solar, MNPV4HV-DISCO 3R-DLX, 4 Input Disconnecting Combiner Midnite Solar, MNPV4HV-DISCO 3R-DLX, 4 Input Disconnecting Combiner
Midnite Solar, MNPV4HV-DISCO 3R-DLX, 4 Input Disconnecting Combiner
The images shown are for illustration purposes only and may not be an exact representation of the product

Midnite Solar, MNPV4HV-DISCO 3R-DLX, 4 Input Disconnecting Combiner

  • Model: MNPV4HV-DISCO 3R-DLX
  • Manufactured by: Midnite Solar
  • Condition: New
  • Estimated Delivery: Jul 2nd - Jul 8th
  • In Stock
Price:

$884.81 $680.62

Manufacturer Info

(image for) Midnite Solar
MNPV4HV-DISCO 3R-DLX Disconnecting Combiner has 80 amp busbars, 100 amp load break rated switch and a third pole which is the feedback micro switch, 600 volt max.

The MNPV4HV-DISCO 3R-DLX's red handled is LOCKABLE IN THE OFF POSITION!
  • Type 3R aluminum enclosure (no rust, won't turn to dust)
  • 90 C terminals

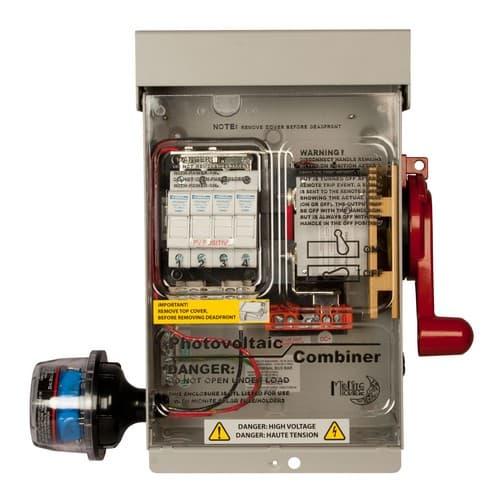

  • See thru deadfront & color coded busbar guards included
  • Meets 2014 NEC 690.12
  • Current Rating - 80A
  • Output Circuits - 1
  • Max. Output Wire Size - 1/0
  • Load Break Rated
  • Four Fuseholders (MNTS) installed. To receive 20 amp fuses use this part number: MNPV4HV-DISCO 3R-DLX-20
  • Four 15a/600v fuses installed
  • Works with the Birdhouse
  • Warranty - 5 yrs.
  • Listed by ETL for US & Canada
  • Made in the USA
  • Disconnecting Combiner Brochure | Download
  • Rapid Shutdown Brochure | Download
  • ATM MNPV4HV and MNPV6HV Disco | Download
  • MNPSB Instructions | Download
  • HV Disconnecting Combiner Manual | Download
  • MNBirdhouse | Download
Hardware Includes:
  • Four 1/2 inch strain reliefs (MNSR-1000)
  • Four 1/2" LOCKNUT
  • One 10-32 X 7/8" BOLT
  • One 10-32KEPS NUT
  • One TERMINAL PIN 18-22 AWG.
  • One TERMINAL PIN 10-12 AWG.
  • One RING TERMINAL 10-12 AWG.
  • One BLUE WRENCH
  • One MNSPD-600 (Surge Protection Device)
