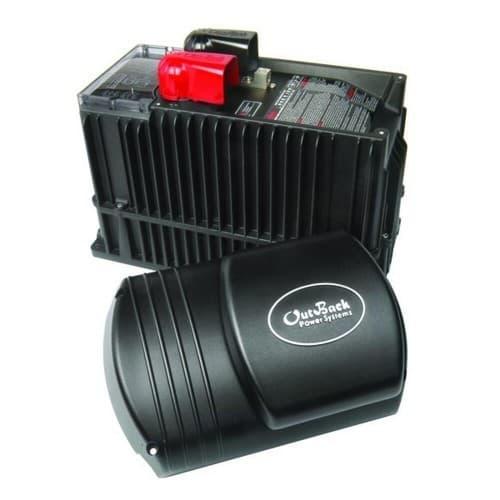

Outback Power, FXR2012E, Off-Grid FXR Renewable Series sealed inverter/charger, 2.0 kW, 230 VAC 50/60 Hz, 12 VDC, 100 Amp charger, 30 Amp AC input
The images shown are for illustration purposes only and may not be an exact representation of the product

Outback Power, FXR2012E, Off-Grid FXR Renewable Series sealed inverter/charger, 2.0 kW, 230 VAC 50/60 Hz, 12 VDC, 100 Amp charger, 30 Amp AC input

  • Model: FXR2012E
  • Manufactured by: Outback Power
  • Condition: New
  • Estimated Delivery: Jul 2nd - Jul 8th
  • In Stock
Price:

$2,577.22 $1,982.48

Would you like to add these items to your order?
Outback Power, HUB10.3, Ten Port with Sub-Phase Master Stacking, up to 10 devices and one MATE  $498.28 $383.29

Outback Power, MATE3s, Universal version required by (V)FXR and GS inverters, Dark gray square housing with Ethernet port  $731.91 $563.00

Outback Power, HUB4, Four Port, up to 4 devices and one MATE  $266.48 $204.98

Manufacturer Info

(image for) Outback Power
The latest, most advanced features on the industry's most trusted andproven platform-that's the essence of OutBack'snew FXR Series ofGrid/Hybrid inverter/chargers. Capable ofoff-grid or grid-connectedoperation in a single model, theFXR Grid/Hybrid inverter/chargersprovide system designerswith unprecedented flexibility andcompatibility for nearly any power conversion scenario.

The new FXR features and technologies on the acclaimedFX platform include:

Both off-grid and grid-tied functionality in one unit
  • Seven programmable modes, including GridZero and Support Mode, and built-in networked communications
  • Advanced Battery Charging (ABC) with expanded charging voltagesandtime parameters, enabling system designers to accommodate thespecificcharging profiles and algorithms of new and emerging energystoragetechnologies including Lithium Ion, Aqueous Ion and Flow Chemistrybatteries
  • Easy system upgradability in the field
  • Product Specifications | Download
  • Product Manual | Download
FXR inverter/chargers can be paired with a MATE3 to add OPTICSRE tomonitor and control system performance from any location.Available inpower ranges from 2000W-3000W, multiple units may bestacked andconnected with other OutBack Power electronics for moreseamless systemintegration and the ability to function in a wide varietyofapplications, and system sizes. Up to nineinverters can be combined in a3-phase system with the 12V, 24V or 48Vmodels, and up to 30kW in agrid-tied 24V or 48V system. The exclusivemodular system architecturemeans that increased power output is justan additional FXRinverter/charger away.

Available in sealed or vented units with NEMA type 1 die-castaluminumchassis designed to operate in the harshest environmentalconditionssuch as high temperatures, humidity or corrosive salt air,the FXR'scontinue in OutBack's tradition of absolute dependability inmission criticalinstallations no matter how harsh or challenging theconditions.

Product Highlights
  • Single-phase, 230V Sinewave Output in 12V, 24V, or 48V Versions
  • 2000W and 2300W Sealed Models
  • 2600W and 3000W Vented Models
  • Programmable for Seven Different Modes with Generator Assist
  • Modular, Stackable Design for up to Nine Inverters in Three-phase and 10 Inverters in Grid-tied
  • Up to 93% Operating Efficiency
  • Field Upgradable Software
  • Standard 5-Year Warranty with Optional 10-Year
