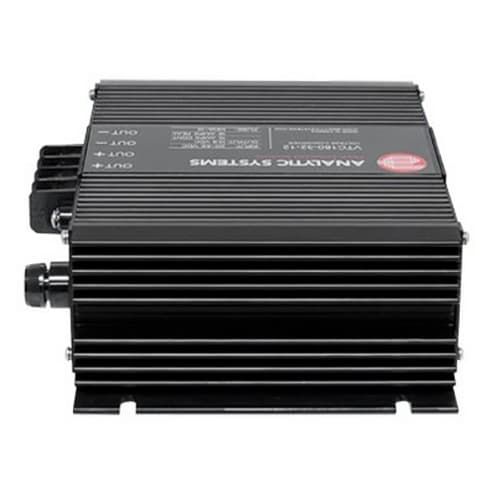

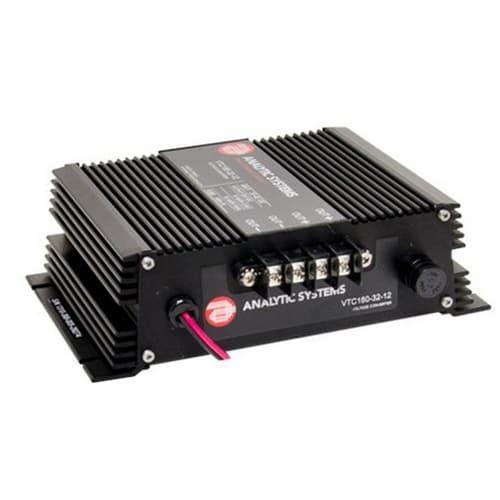

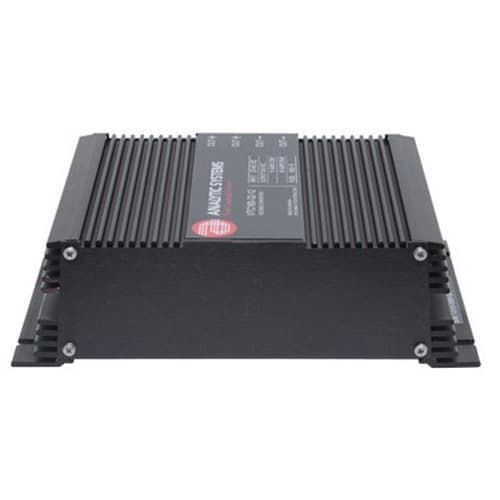

Analytic Systems, VTC180-72-24, 7.5/9A, 24V Out, 65-100V In, Non-Iso DC/DC Converter
Manufacturer Info
Features
- Ultra-quiet
- Power sensitive electronics without interference
- Rugged and reliable to ensure years of safe and trouble free operation
- Input voltage range allows operation from 24, 32, 48, or 72VDC power systems
- Extremely rugged and well suited for marine and other demanding environments
- High tolerance for shock and vibration
- Ultra-quiet low EMI operation
- Inrush protection
- Current limiting protection
- Reverse input protection
- High Efficiency
- Output over-voltage crowbar
- Remote control option
- Wide-Temperature operation Available
- Conformal Coating and/or Harsh Environment Ruggedization available
- Three year parts and labour warranty
- Product Datasheet | Download
- Product Manual | Download
Function | Voltage Converter |
---|---|
Conversion | DC to DC |
Power Level | 180 |
Input Volts | 65 - 100 VDC |
Output Volts | 24 VDC |
Output Amps Continuous | 7.5 |
Output Amps Peak | 9 |
Input/Output Isolation | No |
Technology | Analog |
Product Series on website | VTC180 |
Option Codes | 'Z' No Conformal Coating (Any Model), 'X' Ruggedized & Wide Temp, 'O' Open Frame - No chassis, 'N' Encapsulated, 'M' Military Rugged, 'J' MIL810 Tested Only, 'I' MIL461 Tested Only, 'F' Electric Fork Lift, 'E' European ROHS compliant, 'C' MIL461F & MIL810G Tested |
