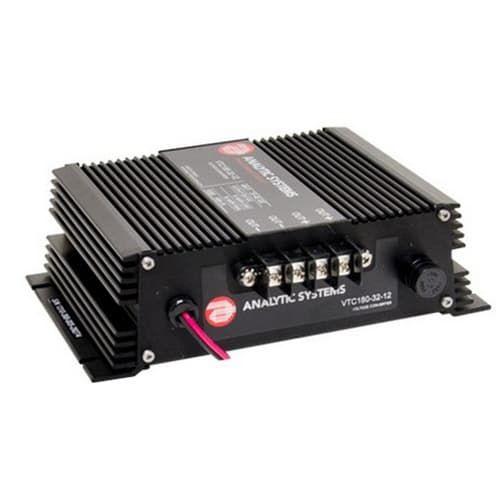

Home Analytic Systems Analytic Converters Analytic Systems, VTC180-72-12, Step-Down DC/DC Converter
Analytic Systems, VTC180-72-12, Step-Down DC/DC Converter Analytic Systems, VTC180-72-12, Step-Down DC/DC Converter Analytic Systems, VTC180-72-12, Step-Down DC/DC Converter
Analytic Systems, VTC180-72-12, Step-Down DC/DC Converter

Analytic Systems, VTC180-72-12, Step-Down DC/DC Converter

  • Model: VTC180-72-12
  • Manufactured by: Analytic Systems
  • Condition: New
  • Estimated Delivery: 2 to 3 Weeks
  • Estimated Delivery: May 24th - May 30th
  • In Stock
  • Out of Stock
  • Lead Time To Ship May Vary
  • Price: $526.50  $405.00
    The VTC180 Series of voltage converters are variable duty cycle switching power supplies. They can be configured to run from a 24V, 32V, 48V or 72 VDC power systems to provide output voltages as shown below.

    The VTC180 Series Voltage Converter features reverse input protection, current limiting, output over-voltage protection, ultra quiet low EMI operation and a wide operating temperature range.

    We are confident that you will get many years of reliable service from this Voltage Converter.

    Features
    • Input voltage range allows operation from 32, 48, or 72VDC power systems
    • Extremely rugged and well suited for marine and other demanding environments
    • High tolerance for shock and vibration
    • Ultra-quiet low EMI operation
    • Inrush protection
    • Current limiting protection
    • Reverse input protection
    • High Efficiency
    • Output over-voltage crowbar
    • Remote control option
    • Wide-Temperature operation Available
    • Conformal Coating and/or Harsh Environment Ruggedization Available
    • 3 year parts and labour warranty
    • Product Specifications | Download
    • Product Manual | Download
    Applications
    • Marine & other rugged environments
    • Mobile Offices (TV and Radio Vans)
    • Automotive / RV
    • Electric Utilities and Substations
    • Base Station Power(Radio & Telecommunications)
    • Industrial Controls(OEM Applications)
    • Field Work / Construction Sites
    • Solar/Alternative Power Systems
    • Emergency Backup Power (UPS)
    Input Volts (ip)324872
    Actual (Vdc)*20-4540-6565-100
    Input Amps (Max)13.66.84.3
    Input Fuse (MDA)15105
    Noise on Input< 10mV
    Output Nominal (op)1224
    Output Volts (DC)13.6 0.0527.2 0.05
    Output Crowbar16.0 0.5V32.0 1.0V
    Output Amps15 cont./ 18 peak7.5 cont./ 9.0 peak
    Output Ripple & Noise< 10 mV
    Transient Response< 1V for 50% Surge
    Regulation(Line & Load)< +/- 0.5%
    Duty CyclePeak 20% for 10 min maximumContinuous 100% for 24 hours per day
    Efficiency> 90% @ Maximum Output
    Operating Temp. Range-25 to +50C @ maximum output Derate Linearly 2.5% perC from 50C(Optional -40C extra wide temp. operation avail.)
    Humidity0 - 95% Relative Humidity(non-condensing) with optional conformal coating
    Audible NoiseNONE db @ 3 ft
    Typical Service Life>10 years (87,600 hours)
    IsolationInput to Case 1500VDC (500VDC @ 32V Input)500VDC Output to Case
    Length7.9 in/ 20.1 cm
    Width6.0 in/ 15.2 cm
    Height2.4 in/ 6.1 cm
    MaterialMarine Grade Aluminium
    FinishBlack Anodize
    FasteningsAll 18-8 Stainless Steel
    Weight4.0 lb / 1.8 kg
    ConnectionsFour contact output terminals
    Warranty3 years
    SafetyDesigned to meet CSA 22.2.107.1 & UL458
