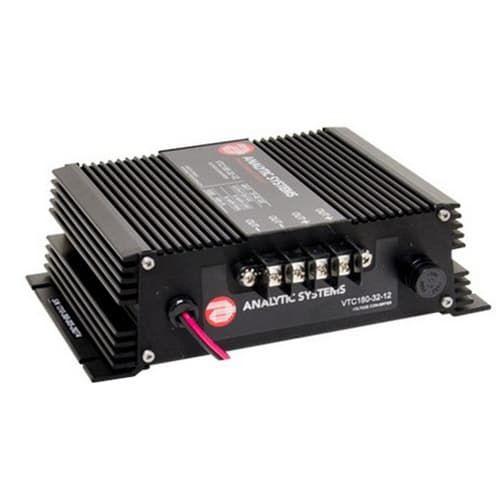

The images shown are for illustration purposes only and may not be an exact representation of the product
The VTC180 Series of voltage converters are variable duty cycle switching power supplies. They can be configured to run from a 24V, 32V, 48V or 72 VDC power systems to provide output voltages as shown below.
The VTC180 Series Voltage Converter features reverse input protection, current limiting, output over-voltage protection, ultra quiet low EMI operation and a wide operating temperature range.
We are confident that you will get many years of reliable service from this Voltage Converter.
Features- Input voltage range allows operation from 32, 48, or 72VDC power systems
- Extremely rugged and well suited for marine and other demanding environments
- High tolerance for shock and vibration
- Ultra-quiet low EMI operation
- Inrush protection
- Current limiting protection
- Reverse input protection
- High Efficiency
- Output over-voltage crowbar
- Remote control option
- Wide-Temperature operation Available
- Conformal Coating and/or Harsh Environment Ruggedization Available
- 3 year parts and labour warranty
- Product Specifications | Download
- Product Manual | Download
Applications- Marine & other rugged environments
- Mobile Offices (TV and Radio Vans)
- Automotive / RV
- Electric Utilities and Substations
- Base Station Power(Radio & Telecommunications)
- Industrial Controls(OEM Applications)
- Field Work / Construction Sites
- Solar/Alternative Power Systems
- Emergency Backup Power (UPS)
| Input Volts (ip) | 32 | 48 | 72 |
|---|
| Actual (Vdc) | *20-45 | 40-65 | 65-100 |
|---|
| Input Amps (Max) | 13.6 | 6.8 | 4.3 |
|---|
| Input Fuse (MDA) | 15 | 10 | 5 |
|---|
| Noise on Input | < 10mV |
|---|
| Output Nominal (op) | 12 | 24 |
|---|
| Output Volts (DC) | 13.6 0.05 | 27.2 0.05 |
|---|
| Output Crowbar | 16.0 0.5V | 32.0 1.0V |
|---|
| Output Amps | 15 cont./ 18 peak | 7.5 cont./ 9.0 peak |
|---|
| Output Ripple & Noise | < 10 mV |
|---|
| Transient Response | < 1V for 50% Surge |
|---|
| Regulation(Line & Load) | < +/- 0.5% |
|---|
| Duty Cycle | Peak 20% for 10 min maximumContinuous 100% for 24 hours per day |
|---|
| Efficiency | > 90% @ Maximum Output |
|---|
| Operating Temp. Range | -25 to +50C @ maximum output Derate Linearly 2.5% perC from 50C(Optional -40C extra wide temp. operation avail.) |
|---|
| Humidity | 0 - 95% Relative Humidity(non-condensing) with optional conformal coating |
|---|
| Audible Noise | NONE db @ 3 ft |
|---|
| Typical Service Life | >10 years (87,600 hours) |
|---|
| Isolation | Input to Case 1500VDC (500VDC @ 32V Input)500VDC Output to Case |
|---|
| Length | 7.9 in/ 20.1 cm |
|---|
| Width | 6.0 in/ 15.2 cm |
|---|
| Height | 2.4 in/ 6.1 cm |
|---|
| Material | Marine Grade Aluminium |
|---|
| Finish | Black Anodize |
|---|
| Fastenings | All 18-8 Stainless Steel |
|---|
| Weight | 4.0 lb / 1.8 kg |
|---|
| Connections | Four contact output terminals |
|---|
| Warranty | 3 years |
|---|
| Safety | Designed to meet CSA 22.2.107.1 & UL458 |
|---|
