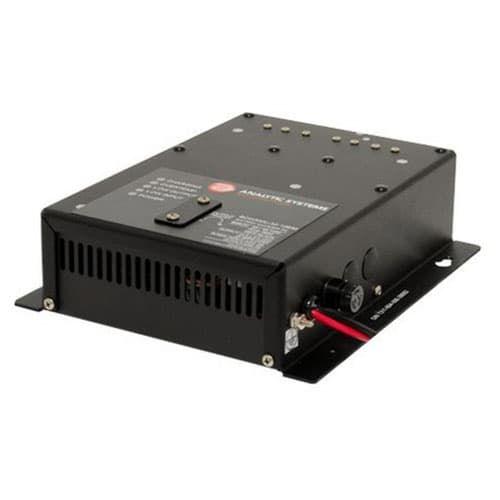

The BCD300 battery charger provides up to 300 watts to charge a 12V or 24V battery system (1 or 2 banks) from a 24V, 32V or 36V source. The source and the batteries under charge must share a common ground.
The all-new single board design incorporates state of the art switchmode technology for unmatched efficiency and ultra-quiet operation. Multiple stages of filtering reduce radiated or conducted noise to very low levels. The BCD300 Series is capable of charging up to two independent banks of batteries. The two stage charging profile charges the batteries at a constant current equal to the maximum continuous output of the unit. When the battery voltages come up to the float voltage that the unit is set to, the current into the batteries will taper off as necessary to maintain the batteries at the float voltage.
The unit can be left permanently connected without fear of overcharge or damage to the batteries. The adjustable float voltage feature allows the unit to be used for any type of lead-acid battery including lead acid and gel cell. Available options include a remote control and/or extra wide temperature. We are confident that you will get many years of reliable service from this Battery charger.
Features- Adjustable output voltage for charging standard or deep cycle lead-acid, VRLA or Gel cell type battery
- Audible and visual indicators for constant current, low input voltage, low output voltage and over-temperature
- Extremely rugged and well suited for marine and other demanding environments
- High tolerance for shock and vibration
- Ultra-quiet low EMI operation
- Current limiting protection
- Short circuit protection
- Reverse input protection
- Output over-voltage crowbar
- Dry contact output fail relay
- Over-temperature shutdown
- Spark-free connection
- Wide temperature operation available
- Can function as a DC/DC Voltage Converter
- Conformal coating and/or harsh environment ruggedization available
- Optional portable features for automotive use
- 3 year parts and labour warranty
- Product Specifications | Download
- Product Manual | Download
Applications- Marine and other rugged environments
- Mobile Offices (TV and Radio Vans)
- / Automotive / RV / Military
- Electric Utilities and Substations
- Base Station Power (Radio and Telecommunications)
- Industrial Controls
- Field Work / Construction Sites
- Solar / Alternative Power Systems
- Emergency Backup Power (UPS)
- Charge any 12 or 24V Battery System
| Input Volts (DC) | 20-45 | 30-45 |
|---|
| Input Amps (Max) | 20 | 22 |
|---|
| Input Fuse (AGC) | 25A |
|---|
| Noise on Input | < 10mV |
|---|
| Low Input Voltage Alarm | 10.5V |
|---|
| Output Nominal (op) | 12 | 24 |
|---|
| Output Volts (DC) | 13.6 0.05 | 27.2 0.05 |
|---|
| Output Amps | 25 | 20 |
|---|
| Output Crowbar | 16.0 0.5V | 32.0 0.5V |
|---|
| Output Fuse (AGC) | 30A x 2 | 25A x 2 |
|---|
| Output Ripple & Noise | < 10mV |
|---|
| Battery Banks | 1 or 2 |
|---|
| Stages | 2 |
|---|
| Battery Size (Amp Hours)* | 100-150 | 80-120 |
|---|
| Regulation (Line & Load) | < 0.5% |
|---|
| Duty Cycle | Continuous 100% for 24 hours per day |
|---|
| Efficiency | > 85% @ Maximum Output |
|---|
| Operating Temp. Range | -25 to +40C @ maximum output Derate Linearly 2.5% per C from 40C(Optional -40C extra wide temp. operation avail.) |
|---|
| Humidity | 0 - 95% Relative Humidity(non-condensing) with optional conformal coating |
|---|
| Audible Noise | NONE db @ 3 ft |
|---|
| Typical Service Life | >10 years (87,600 hours) |
|---|
| Isolation | Any Input or Output to Case 500 VDC Input to Output - Common Negative |
|---|
| Length | 9.1 in / 23.1 cm |
|---|
| Width | 7.8 in / 19.8 cm |
|---|
| Height | 2.5 in / 6.4 cm |
|---|
| Material | Marine Grade Aluminium |
|---|
| Finish | Black Anodize / Powder Epoxy Coat |
|---|
| Fastenings | All 18-8 Stainless Steel |
|---|
| Weight | 4.0 lb / 1.8 kg |
|---|
| Connections | #12 AWG Input Wires (Positive & Negative) Four contact output terminal |
|---|
| Warranty | 3 years |
|---|
| SAfety | Designed to meet CSA 22.2.107.1 & UL458 |
|---|
