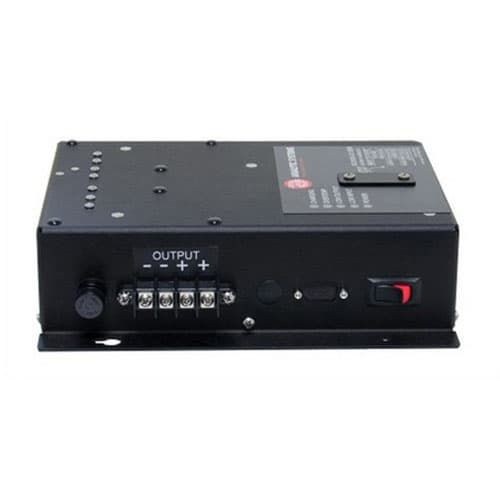

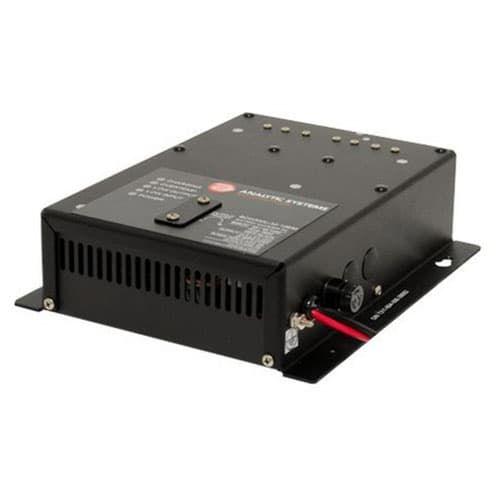

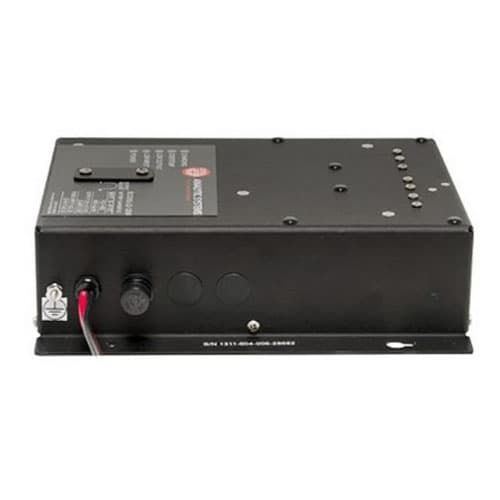

The images shown are for illustration purposes only and may not be an exact representation of the product

Analytic Systems, BCD300-32-12, DC/DC Charger

  • Model: BCD300-32-12
  • Manufactured by: Analytic Systems
  • Condition: New
  • Estimated Delivery: 2 to 3 Weeks
  • Built to Order - This Product Cannot Be Cancelled Once Order Is Placed
  • Price: $919.62  $707.40
    The BCD300 battery charger provides up to 300 watts to charge a 12V or 24V battery system (1 or 2 banks) from a 24V, 32V or 36V source. The source and the batteries under charge must share a common ground.

    The all-new single board design incorporates state of the art switchmode technology for unmatched efficiency and ultra-quiet operation. Multiple stages of filtering reduce radiated or conducted noise to very low levels. The BCD300 Series is capable of charging up to two independent banks of batteries. The two stage charging profile charges the batteries at a constant current equal to the maximum continuous output of the unit. When the battery voltages come up to the float voltage that the unit is set to, the current into the batteries will taper off as necessary to maintain the batteries at the float voltage.

    The unit can be left permanently connected without fear of overcharge or damage to the batteries. The adjustable float voltage feature allows the unit to be used for any type of lead-acid battery including lead acid and gel cell. Available options include a remote control and/or extra wide temperature. We are confident that you will get many years of reliable service from this Battery charger.

    Features
    • Adjustable output voltage for charging standard or deep cycle lead-acid, VRLA or Gel cell type battery
    • Audible and visual indicators for constant current, low input voltage, low output voltage and over-temperature
    • Extremely rugged and well suited for marine and other demanding environments
    • High tolerance for shock and vibration
    • Ultra-quiet low EMI operation
    • Current limiting protection
    • Short circuit protection
    • Reverse input protection
    • Output over-voltage crowbar
    • Dry contact output fail relay
    • Over-temperature shutdown
    • Spark-free connection
    • Wide temperature operation available
    • Can function as a DC/DC Voltage Converter
    • Conformal coating and/or harsh environment ruggedization available
    • Optional portable features for automotive use
    • 3 year parts and labour warranty
    • Product Specifications | Download
    • Product Manual | Download
    Applications
    • Marine and other rugged environments
    • Mobile Offices (TV and Radio Vans)
    • / Automotive / RV / Military
    • Electric Utilities and Substations
    • Base Station Power (Radio and Telecommunications)
    • Industrial Controls
    • Field Work / Construction Sites
    • Solar / Alternative Power Systems
    • Emergency Backup Power (UPS)
    • Charge any 12 or 24V Battery System
    Input Volts (DC)20-4530-45
    Input Amps (Max)2022
    Input Fuse (AGC)25A
    Noise on Input< 10mV
    Low Input Voltage Alarm10.5V
    Output Nominal (op)1224
    Output Volts (DC)13.6 0.0527.2 0.05
    Output Amps2520
    Output Crowbar16.0 0.5V32.0 0.5V
    Output Fuse (AGC)30A x 225A x 2
    Output Ripple & Noise< 10mV
    Battery Banks1 or 2
    Stages2
    Battery Size (Amp Hours)*100-15080-120
    Regulation (Line & Load)< 0.5%
    Duty CycleContinuous 100% for 24 hours per day
    Efficiency> 85% @ Maximum Output
    Operating Temp. Range-25 to +40C @ maximum output Derate Linearly 2.5% per C from 40C(Optional -40C extra wide temp. operation avail.)
    Humidity0 - 95% Relative Humidity(non-condensing) with optional conformal coating
    Audible NoiseNONE db @ 3 ft
    Typical Service Life>10 years (87,600 hours)
    IsolationAny Input or Output to Case 500 VDC Input to Output - Common Negative
    Length9.1 in / 23.1 cm
    Width7.8 in / 19.8 cm
    Height2.5 in / 6.4 cm
    MaterialMarine Grade Aluminium
    FinishBlack Anodize / Powder Epoxy Coat
    FasteningsAll 18-8 Stainless Steel
    Weight4.0 lb / 1.8 kg
    Connections#12 AWG Input Wires (Positive & Negative) Four contact output terminal
    Warranty3 years
    SAfetyDesigned to meet CSA 22.2.107.1 & UL458
