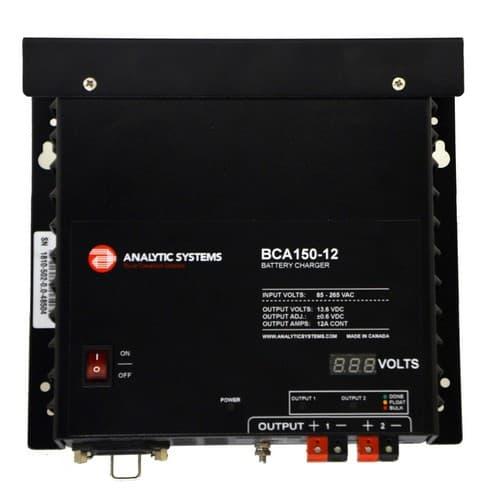

Analytic Systems, BCA150-12, 12A, 12V Out, 85-265VAC PFC In, AC/DC Battery Charger, 2 Bank

  • Model: BCA150-12
  • Manufactured by: Analytic Systems
  • Condition: New
  • Estimated Delivery: 2 to 3 Weeks
  • Built to Order - This Product Cannot Be Cancelled Once Order Is Placed
Price:

$666.90 $513.00

Manufacturer Info

Features
  • 150 watts of charging power
  • Two or three bank charging
  • Temperature compensation
  • Manual equalization mode
  • Two or three stage charging profiles
  • Low EMI
  • Adjustable float voltage
  • Three year parts and labour warranty
Function Battery Charger
Conversion AC to DC
Power Level 150
Input Volts 85 - 265 VAC
Power Factor Corrected (PFC) Yes
Output Volts 12 VDC
Output Amps Continuous 12
Input/Output Isolation Yes
Technology Analog
Charging Stages 3
Temperature Compensation Yes
Equalize Yes
Battery Banks 2
Product Series on website BCA150
Option Codes 'Z' No Conformal Coating (Any Model), 'Y' IP67 Certified, 'X' Ruggedized & Wide Temp, 'W' IP66 Water Resistant, 'V' Digital Volt/Ammeter, 'U' Safety Special Inspection (CSA/UL), 'P' Portable (Handle & Feet), 'O' Open Frame - No chassis, 'M' Military Rugged, 'J' MIL810 Tested Only, 'I' MIL461 Tested Only, 'G' GMDSS (DVAM & RCP1 Remote), 'E' European ROHS compliant, 'C' MIL461F & MIL810G Tested
