NOTE: IF USING THE BIRDHOUSE FOR JUST SHUTTING DOWN A BATTERY BASED SYSTEM BREAKER WITHOUT A COMBINER YOU MUST USE THE MNFX-CABLE FAUX CABLE.

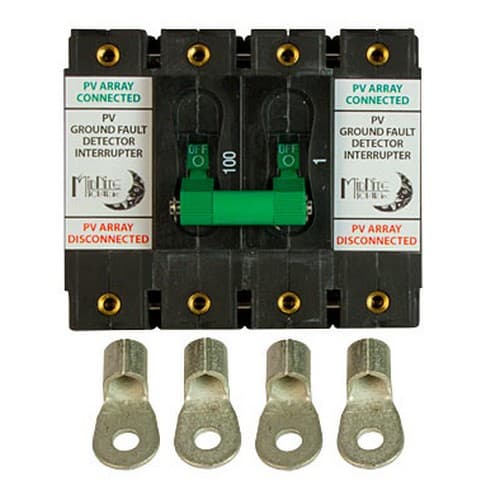

100 amp 150VDC panel mount Dual DC ground fault protector (NRTL listed breaker assy)

This breaker has several possible uses

• Environmental Rating - Type 1 (Indoor)
• 1 pv array breaking pv - and + using the 1 amp pole as the trip source
• 1 pv array breaking pv - and + using the classic to shunt trip the device
• 2 pv arrays breaking just the + using the 1 amp pole as a trip source
• 2 pv arrays breaking just the + using the classic to shunt trip the device
• 2 pole AC or DC disconnect that will interact with our Rapid Shutdown System using our battery disconnect module
• MNDC-GFP100-Dual Manual | Download
• Breaker and Busbar Torque Specs | Download
• MNDC-GFP100 Specifications | Download
• Breaker Time Delay Values | Download
• C-Series Breaker Specifications | Download
• MNBirdhouse | Download
• MNDC-GFP100RT-AC | Download
• MNDC-GFP100RT-2P-2CL150 | Download

All MidNite circuit breakers hold 100% rated current independent of ambient temperature.

All MidNite circuit breakers can be used at 100% rated current when mounted in a MidNite enclosure.

Breaker Torque Value: 30 In-Lbs (3.4NM)

• Environmental Rating - Type 1 (Indoor)
• Listed for US & Canada
