12V, 1000W/50A, 2000W/80A - 120 Vac / 60 Hz True sine wave 120 Vac inverter/charger with built-in transfer switch. Designed for recreational and commercial applications.

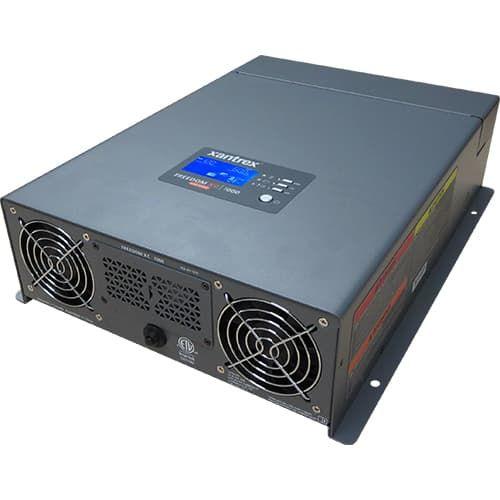

The Freedom XC inverter/charger offers premium performance in a lightweight compact package. It cranks out full output in invert or charge mode from -4F - 104F for operation in all climate temperatures. The extended surge rating of the Freedom XC makes it ideal to start difficult loads including fridge and microwave. The quick connect terminals at AC IN/OUT make installation a breeze.
Inverter Key Features - Extended Surge Rating: Surges to 2X continuous power for 2 seconds for motor loads
- True Sine Wave AC Power: For operation of sensitive and motor loads
- Ignition Control: Feature to turn inverter on/off via a 12 VDC signal and to minimize battery drain by switching the inverter off when the ignition key is turned off
- Wide 10-18 VDC Input Range: Ensures inverter operation on high voltage alternators found on many new vehicle chassis
- Programmable AC Under-Voltage (85-110VAC) Shutdown: Feature ideal to operate under weak shore power or generator input
- Built-in 30A AC Transfer Relay: Senses when outside AC Power is present and transfers the load from the inverter to the source of incoming power (shore or generator). The unit also automatically switches from invert mode to charge mode
- Product Specifications | Download
- Product Manual | Download
Built-in Charge Features - Power Factor Corrected Multi-Stage Charging: Utilizes less shorepower when charging batteries. This frees up more usable AC power for running electrical devices and appliances and reduces the likelihood of tripping shorepower breakers
- Programmable: Configurable 3 stage temperature compensated battery charge algorithm for optimal charging of almost any battery type up to 18V
- Battery Equalization: Maximizes flooded battery life
- Dead Battery Charging Down to 0 Vdc
- Power Share: Prioritizes AC loads by reducing the charge current and maintaining the total input current to less than the breaker setting
| Models | Part number | Input voltage | AC output |
| Freedom XC 1000 | 817-1050 | 12V | Hardwire (Optional GFCI) |

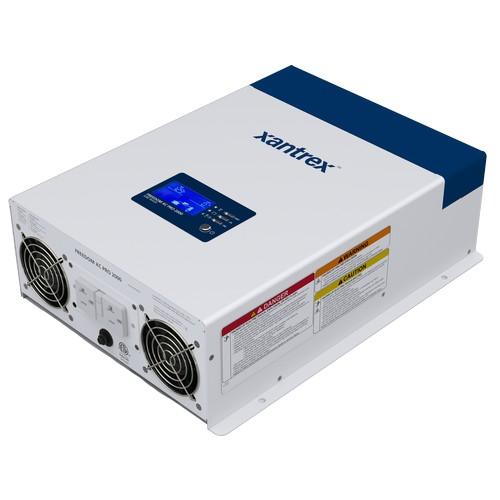

| Freedom XC 2000 | 817-2080 | 12V | Hardwire (Optional GFCI) |
| Accessories | Part number |
| Freedom X/ XC remote panel with 25' Cable | 808-0817-01 |
| GFCI Option | 808-9817 |
| Communication cable 25 ft | 31-6257-00 |
| Communication cable 50 ft | 31-6262-00 |
