IBI2 and IBI3 Series BENEFITS - ll batteries charge when engine running, regardless of master switch setting
- Batteries isolated from each other when engine off
- Complete battery charging due to very low voltage drop, only 0.16 voltsat 200 amps and 0.016 volts at 20 amps
- 200 Amp current carrying capacity ensures compatibility with almost every alternator
- Product Datasheet | Download

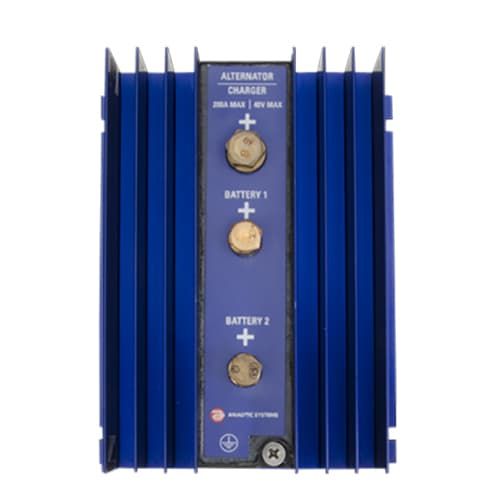

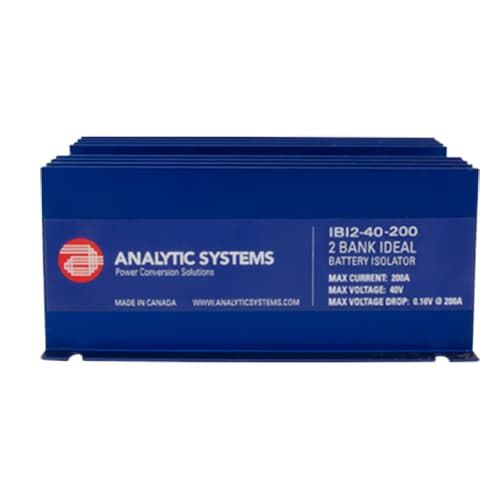

Analytic Systems introduces the IBI (Ideal Battery Isolator) for 2 bank and 3 bank battery systems, allowing all the batteries to be fully charged from a single alternator while maintaining electrical isolation between the battery banks.
Ideal Diode technology uses MosFet Transistors and control circuitry to replace the diode used in a traditional battery isolator and reduces the voltage drop across the isolator to a mere 160 millivolts at 200 Amps of charging current and essentially zero volts at low current, so all the power of the alternator is applied to the batteries ensuring a full recharge every time.
While the Ideal Battery Isolator is designed to be used with an alternator, it can also be used to convert a single bank battery charger to a 2 or 3 bank charger.
Features and options - All circuitry sealed in epoxy for water resistance
- The alternator can be directly wired to the batteries through the isolator
- CNC machined connection points and bronze fasteners ensure low resistance connections
- Internal high current busbar for optimal current distribution
- Compatible with 12, 24, 28 and 32 volt battery systems
- Can also be used with a single output battery charger
- Extremely compact design saves space
