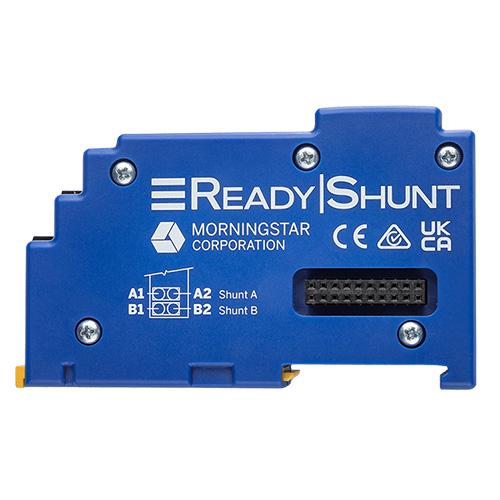

ReadyShuntReadyShunt is a battery meter and DC current sensor that provides visibility to critical battery information including SOC (state-of-charge) and other key metrics essential to battery and off-grid system health. It supports lead acid, lithium, and other battery chemistries. ReadyShunt easily snaps into a ReadyRail-equipped Morningstar product. After following operating manual instructions to connect your battery, the ReadyShunt is recognized and activated.
Part of the ReadyBlock suite of add-onû yet built-inû functionality available in Morningstar ôhostö components featuring the ReadyRail expansion system.
- "Add-on" in the sense that ReadyBlocks can be integrated into a system at any time, either on inception or later as needs arise
- "Built-in" because once added, ReadyBlocks become part of the host component, seamless integrated into both its hardware and software
Model numbers associated with this product- RB-SHUNT KIT: complete package with ReadyShunt Block and the 500A 50mV Shunt
- RB-SHUNT BLOCK: snap-in piece (ReadyShunt Block) without Shunt
- RB-500-50: a 500A 50mV Shunt
- RB-100-50: a 100A 50mV Shunt
- RB-50-50: a 50A 50mV Shunt
- Product Datasheet | Download
- Operations Manual - EN (English) | Download
- Operations Manual - ES (Spanish) | Download
- Operations Manual - DE (German) | Download
- Operations Manual - FR (France) | Download
- Quick Start Guide - EN (English) | Download
- Quick Start Guide - ES (Spanish) | Download
- Quick Start Guide - DE (German) | Download
- Quick Start Guide - FR (France) | Download
- Ready Block Brochure | Download
- Shunt Specifications | Download
Works with GenStar MPPT Fully-Integrated DC Solar ChargerReadyShunt is TAA Compliant.Key Features and Benefits- Provides an integrated ôbattery meterö for lead-acid and other chemistries to determine SOC and other health metrics
- Net battery current measurement enables system-wide maximum charge current into the battery when multiple charge sources are present.
- Current measurement data is automatically integrated into the GS LiveView dashboard, data logging. Thus thereÆs no more clunky 3rd party meter add-ons requiring different interfaces, meters, etc. No software configuration to integrate the data û we do that for you
- Shunt data is made available to the user for use in logic configuration for decision-making.
- Highly configurable to accommodate a wide range of shunt sizes with both 50mV and 100mV scaling options
- Available in a kit wit 50mV/500A shunt or just the block
