Features - Military-grade extrusion ensures a high tolerance for shock and vibration
- Low EMI
- Color coded output terminals
- LED Visual indicators for operation and errors
- Rugged and reliable
- Five year parts and labour warranty
- Product Datasheet | Download
- Product Manual | Download

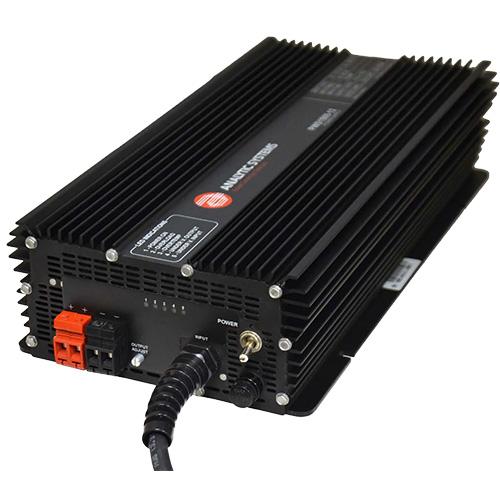

The PWS1550 Series Power Supply provides up to 1500 watts continuous and 1800 watts intermittent to power one or more DC loads from a 110 or220 VAC source. Two positive and two negative output connections are provided for easy connection to multiple devices.
Internally, the recently updated design incorporates a Power Factor Corrected (PFC) input stage allowing the charger to run continuously from 85 264 VAC at 50 or 60 Hz with a Power Factor of 0.99 or better from 10% to 100% load. Heavy input and output filtering reduces EMI to extremely low levels to prevent radio interference.
Safety features include over-temperature shutdown, current limiting, short circuit protection with automatic recovery, input under voltage shutdown and output over-voltage protection. Additional features include visual indicators for low input voltage, overload and over-temperature, dry contact output fail output and remote control connection.
This new power supply is identical to the predecessor PWS1505 Series in form, fit, and function and is a direct drop in replacement.
| Function | Power Supply |
|---|
| Conversion | AC to DC |
|---|
| Power Level | 1500 |
|---|
| Input Volts | 85 - 264 VAC, 110 VAC, 110/220 VAC, 220 VAC |
|---|
| Power Factor Corrected (PFC) | Yes |
|---|
| Output Volts | 72 VDC |
|---|
| Output Amps Continuous | 20 |
|---|
| Output Amps Peak | 24 |
|---|
| Input/Output Isolation | Yes |
|---|
| Technology | Analog |
|---|
| Product Series on website | PWS1550 |
|---|
| Option Codes | 'Z' No Conformal Coating (Any Model), 'Y' IP67 Certified, 'X' Ruggedized & Wide Temp, 'W' IP66 Water Resistant, 'V' Digital Volt/Ammeter, 'U' Safety Special Inspection (CSA/UL), 'P' Portable (Handle & Feet), 'O' Open Frame - No chassis, 'M' Military Rugged, 'G' GMDSS (DVAM & RCP1 Remote), 'E' European ROHS compliant, 'D' Paralleling Diodes |
|---|
