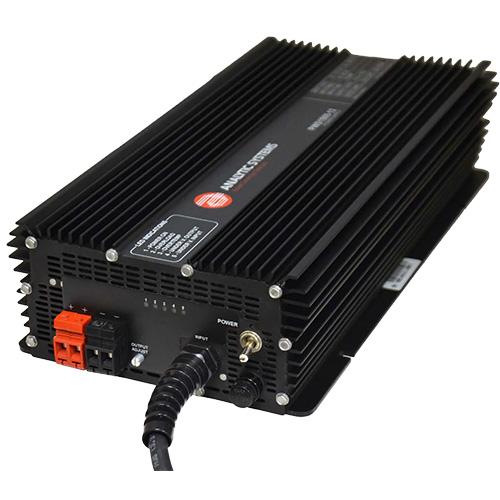

The images shown are for illustration purposes only and may not be an exact representation of the product

Analytic Systems, PWS1550-36, 36/43A, 36V Out, 85 - 264 VAC PFC In, Power Supply

  • Model: PWS1550-36
  • Manufactured by: Analytic Systems
  • Condition: New
  • Estimated Delivery: 2 to 3 Weeks
  • Built to Order - This Product Cannot Be Cancelled Once Order Is Placed
Price:

$2,416.64 $1,858.95

Manufacturer Info

Features
  • Military-grade extrusion ensures a high tolerance for shock and vibration
  • Low EMI
  • Color coded output terminals
  • LED Visual indicators for operation and errors
  • Rugged and reliable
  • Five year parts and labour warranty
  • Product Datasheet | Download
  • Product Manual | Download
The PWS1550 Series Power Supply provides up to 1500 watts continuous and 1800 watts intermittent to power one or more DC loads from a 110 or220 VAC source. Two positive and two negative output connections are provided for easy connection to multiple devices.

Internally, the recently updated design incorporates a Power Factor Corrected (PFC) input stage allowing the charger to run continuously from 85 264 VAC at 50 or 60 Hz with a Power Factor of 0.99 or better from 10% to 100% load. Heavy input and output filtering reduces EMI to extremely low levels to prevent radio interference.

Safety features include over-temperature shutdown, current limiting, short circuit protection with automatic recovery, input under voltage shutdown and output over-voltage protection. Additional features include visual indicators for low input voltage, overload and over-temperature, dry contact output fail output and remote control connection.

This new power supply is identical to the predecessor PWS1505 Series in form, fit, and function and is a direct drop in replacement.
FunctionPower Supply
ConversionAC to DC
Power Level1500
Input Volts85 - 264 VAC, 110 VAC, 110/220 VAC, 220 VAC
Power Factor Corrected (PFC)Yes
Output Volts36 VDC
Output Amps Continuous36
Output Amps Peak43
Input/Output IsolationYes
TechnologyAnalog
Product Series on websitePWS1550
Option Codes'Z' No Conformal Coating (Any Model), 'Y' IP67 Certified, 'X' Ruggedized & Wide Temp, 'W' IP66 Water Resistant, 'V' Digital Volt/Ammeter, 'U' Safety Special Inspection (CSA/UL), 'P' Portable (Handle & Feet), 'O' Open Frame - No chassis, 'M' Military Rugged, 'G' GMDSS (DVAM & RCP1 Remote), 'E' European ROHS compliant, 'D' Paralleling Diodes
