The images shown are for illustration purposes only and may not be an exact representation of the product

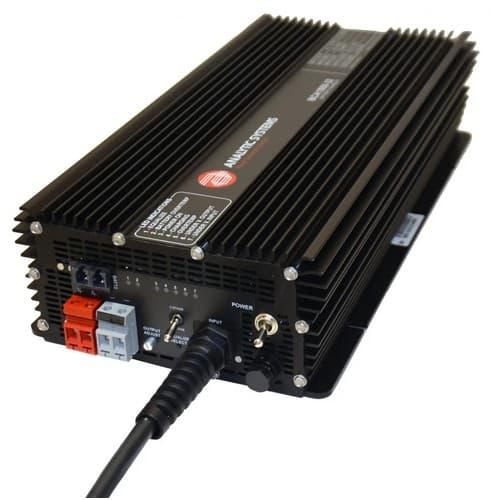

Analytic Systems, BCA1550-32, 41A, 32V Out, 85 - 264 VAC PFC In, AC/DC Battery Charger, 2 Bank

  • Model: BCA1550-32
  • Manufactured by: Analytic Systems
  • Condition: New
  • Estimated Delivery: 2 to 3 Weeks
  • Built to Order - This Product Cannot Be Cancelled Once Order Is Placed
Price:

$2,655.32 $2,042.55

Manufacturer Info

Features
  • Power Factor Corrected AC Input
  • Fast and accurate charging
  • Can function as a power supply
  • Visual indicators for operation and errors
  • Five year parts and labour warranty
  • Download BCA1550 Series Datasheet | Download
  • Download BCA1550 Series Manual | Download
The BCA1550 Series battery charger provides up to 1000 watts of charging power to a one or two bank battery system at 12, 24, 32, 36, 48 or 72 (Rail) VDC from an 85 - 264 VAC source.

The BCA1550 Series chargers (BCA) and power supplies (PWS) are designed to supply a DC load or charge a battery at 12, 24, 32, 36, 48 or 72 (Rail) VDC. The 1550 family provides up to 1500 watts of precision power (the 1050 family supplies up to 1000 watts). The 1550 and 1050 families are identical to their previous models (1505 and 1005, respectively) in form, fit, and function as a direct drop-in replacement.

Internally, the recently updated design incorporates a Power Factor Corrected (PFC) input stage allowing the charger to run continuously from 85 - 264 VAC at 50 or 60Hz with a Power Factor of 0.99 or better from 10% to 100% load. Heavy input filtering reduces EMI to extremely low levels to prevent interference with nearby sensitive electronics. These units are constructed from heavy-duty extruded aluminum chassis and aluminum ventilated front and rear panels with thermostatically controlled cooling fans and all stainless steel fasteners for rugged duty. Reliability features include LED status indicators, input circuit breaker, thermal shutdown, current limiting, reverse polarity connection protection and output short circuit shutdown with automatic recovery.

40A, 32V Out, 85 - 264 VAC PFC In, AC/DC Battery Charger, 2 Bank
FunctionBattery Charger
ConversionAC to DC
Power Level1500
Input Volts85 – 264 VAC, 110 VAC, 110/220 VAC, 220 VAC
Power Factor Corrected (PFC)Yes
Output Volts32 VDC
Output Amps Continuous40
Input/Output IsolationYes
TechnologyAnalog
Charging Stages3
Temperature CompensationYes
EqualizeYes
Battery Banks2
Product Series on websiteBCA1050
Option Codes'Z' No Conformal Coating (Any Model), 'V' Digital Volt/Ammeter, 'U' Safety Special Inspection (CSA/UL), 'P' Portable (Handle & Feet), 'M' Military Rugged, 'E' European ROHS compliant
