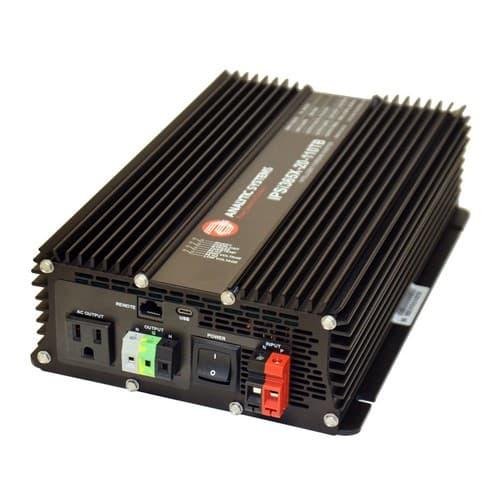

Analytic Systems, IPSi365-40-110, 360 Watt, 40-80V In, 110VAC Out, PureSine Inverter

  • Model: IPSi365-40-110
  • Manufactured by: Analytic Systems
  • Condition: New
  • Estimated Delivery: 2 to 3 Weeks
  • Built to Order - This Product Cannot Be Cancelled Once Order Is Placed
Price:

$1,081.08 $831.60

Manufacturer Info

Features
  • Programmable Low Voltage Shutdown
  • Overload Protected
  • Short Circuit Protected
  • Built-in GFCI
  • DSP Controlled
  • Programmable Frequency
  • Over Temperature Protected
  • Programmable Output Voltage
  • Five year parts and labour warranty
  • IPSi365 Series Datasheet | Download
  • IPSi365 Series Manual | Download
Digital Signal Processor controlled high power MOSFET technology creates a low voltage sine wave that is fed into a compact toroidal step-up transformer to create a very clean low EMI AC output.

Using the free to download 'Inverter Wizard' software, the user can select output frequency, output voltage, and low voltage shutdown parameters from any Windows laptop through the standard micro-usb interface as well as monitoring and logging input and output voltages, output power and inverter temperature.

Safety features include current limiting, short circuit protection, overtemperature warning and shutdown and low input voltage warning and shutdown (user adjustable).

An Off-Line UPS options allows external AC to be routed through the inverter to the load. The inverter will take over supplying the load only if the external AC fails.
Function Inverter
Conversion DC to AC
Power Level 360
Input Volts 40 - 80 VDC
Output Volts 110 VAC
Output Amps Continuous 3
Output Amps Peak 3.6
Input/Output Isolation Yes
Technology Digital
Product Series on website IPSi365
Option Codes 'Z' No Conformal Coating (Any Model), 'X' Ruggedized & Wide Temp, 'U' Safety Special Inspection (CSA/UL), 'M' Military Rugged, 'A' AC Detect & Autoswitch (Off Line UPS)
