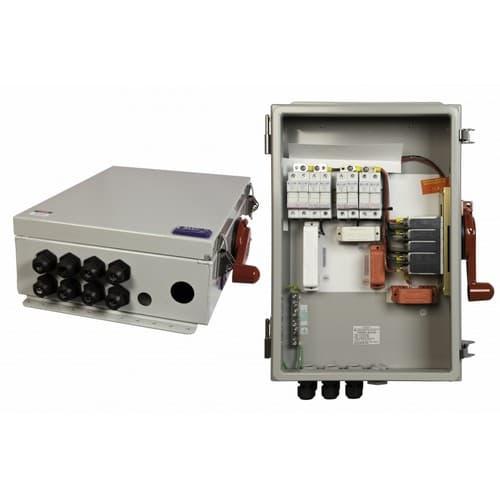

SMA requested MidNite Solar to design and build these DLTL combiners. There are 4 strings entering the combiner with 2 separate strings out. Specifically designed for the new dual channel MPPT on the transformer-less inverters.
The MNPV8HV-DLTL 4X's red handled is LOCKABLE IN THE OFF POSITION! 4 strings into the combiner with 2 separate 30 amp strings out. Specifically designed for the new dual channel MPPT on the transformer-less inverters. This configuration will break the Positive and Negative of 2 separate 600vdc strings.
The difference between the regular Disco combiner and the DLTL version is that the MNPV8HV-Disco-4X is made for a single 8 string inverter, two 4 sting inverters or one 4 string transformerless where as the DLTL is set up for 4 strings in and 2 strings out for Dual MPPT on transformerless - Rapid Shutdown System compliant
- Birdhouse compatible
- Type 4X aluminum enclosure (No Rust)
- Number of Fuse Holders (MNTS) installed - 8
- 8 - Fuses installed
- Current Rating - 60A
- Max. Output Wire Size - 2/0
- Output Circuits - 2
- 90 degree C connections
- Meets 2014 NEC 690.12
- See through dead front and color coded bus bar guards
- #10 AWG internal wiring
- Warranty - 5 yrs.
- Listed by ETL for US & Canada
- Made in the USA
- Rapid Shutdown Brochure | Download
- HV Disconnecting Combiner Manual | Download
- MNPVHV8-DLTL-4X | Download
- MNBirdhouse | Download
Hardware Includes: - Four - STRAIN RELIEFS
- Eleven - 1/2" LOCKNUTS
- Eight - HOLE PLUGS with Gaskets (MNHOLE PLUG 1/2)
- One BLUE WRENCH (MNWRENCH)
