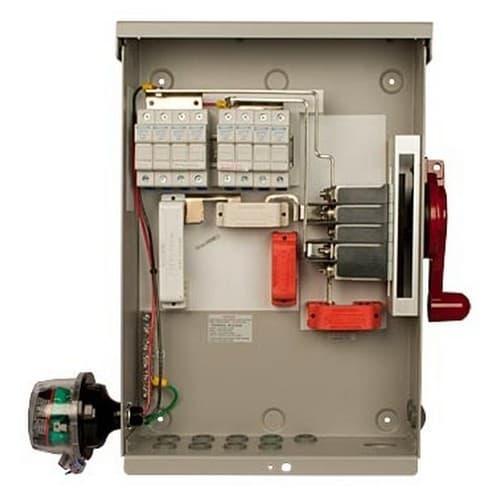

MNPV8HV-DISCO 3R PV Disconnecting Combiner, 5 poles, 80 or 160 amp busbars depending on how they are configured. Switch is a 100 amp load break rated or 175 amps load break rated depending on configuration, 600 volt max.

The MNPV8HV-DISCO 3R's red handled is LOCKABLE IN THE OFF POSITION!

• Convertible configuration (field configurable)
• Eight strings combined for up to 160 Amps single 230 Amp/600V single pole disconnect)
• 4 + 4 positive strings, separate PV+ and PV- for use with 2 inverters (2 pole 115 Amp disconnect)
• Four strings positive, four strings minus for use with non-isolated inverters (2 pole 115 Amp disconnect)
• Disconnect has built in shunt trip with positive feedback
• Birdhouse compatible
• Load Break Rated
• Optional PV connected power supply
• Optional AC connected power supply for redundancy
• Type 3R aluminum enclosure (no rust, won't turn to dust)
• 90 C connections
• See thru deadfront & color coded busbar guards included
• Fuseholders (MNTS) installed
• 15a/600v fuses installed
• 600 volt max
• Meets 2014 NEC 690.12
• Warranty - 5 yrs.
• Listed by ETL for US & Canada
• Made in the USA
• Disconnecting Combiner Brochure | Download
• Rapid Shutdown Brochure | Download
• ATM MNPV8HV and MNPV16HV Disco | Download
• MNPSB Instructions | Download
• HV Disconnecting Combiner Manual | Download
• MNBirdhouse | Download

Hardware Includes:

• One MNSPD-600 (Surge Protection Device)
• Eight 1/2" strain reliefs (MNSR-1000)
• Eight 1/2" LOCKNUTS
• One 10-32 X 7/8" BOLT
• Two 10-32 X 3/8" FHP
• Six 10-32 KEPS NUT
• One TERMINAL PIN 18-22 AWG.
• One TERMINAL PIN 10-12 AWG.
• Two RING TERMINAL 10-12 AWG.
• One BUSBAR, NEGATIVE OUT 2
• One BUSBAR, POSITIVE OUT 2
• One BLUE WRENCH

The difference between the regular Disco combiner and the DLTL version is that the MNPV8HV-Disco-4X is made for a single 8 string inverter, 2 4 sting inverters or one 4 string transformerless where as the DLTL is set up for 4 strings in and 2 strings out for Dual MPPT on transformerless
