Home Midnite Solar Midnite Installation Supplies Midnite Solar, MNPV16HV-DISCO 4X-20, RAPID-SHUTDOWN-SYSTEM-NEC-690.12
Midnite Solar, MNPV16HV-DISCO 4X-20, RAPID-SHUTDOWN-SYSTEM-NEC-690.12 Midnite Solar, MNPV16HV-DISCO 4X-20, RAPID-SHUTDOWN-SYSTEM-NEC-690.12
Midnite Solar, MNPV16HV-DISCO 4X-20, RAPID-SHUTDOWN-SYSTEM-NEC-690.12

Midnite Solar, MNPV16HV-DISCO 4X-20, RAPID-SHUTDOWN-SYSTEM-NEC-690.12

  • Model: MNPV16HV-DISCO 4X-20
  • Manufactured by: Midnite Solar
  • Condition: New
  • Estimated Delivery: Jul 5th - Jul 11th
  • In Stock
  • Out of Stock
  • Price: $2,205.52  $1,696.55

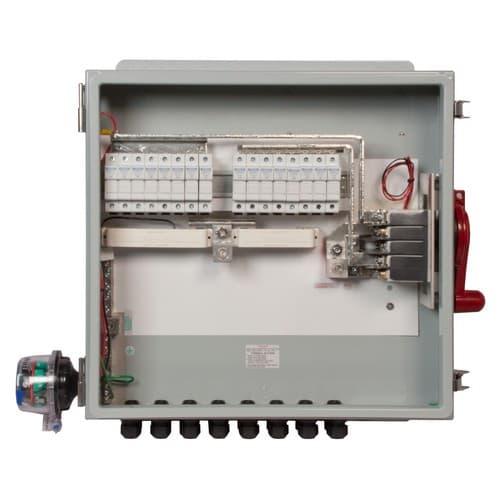

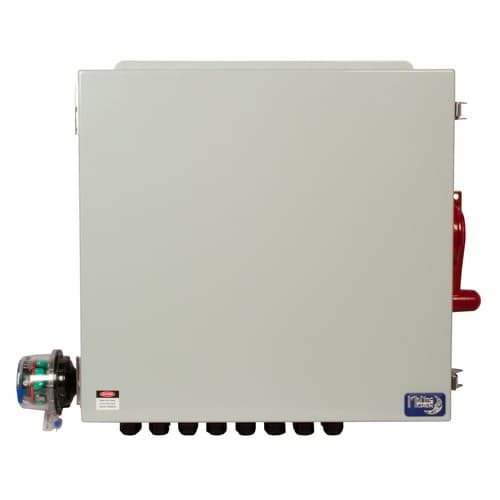

    MNPV16HV Disco 4X PV Disconnecting Combiner, 5 poles, 100 amp load break rated or 175 amps load break rated for busbars and switch, 600 volt max.

    The MNPV16HV DISCO 4X's red handled is LOCKABLE IN THE OFF POSITION!
    • Convertible configuration (field configurable)
    • Sixteen strings combined for up to 230 Amps single pole disconnect)
    • 8 + 8 strings, separate PV+ and PV- for use with 2 inverters (2 pole 115A disconnect)
    • 8 strings plus, 8 strings minus for use with non-isolated inverters (2 pole 115A 600VDC disconnect)
    • Disconnect switch has built in shunt trip with positive feedback
    • See thru deadfront & color coded busbar guards included
    • Birdhouse compatible
    • Optional PV connected power supply
    • Load Break Rated
    • Type 4X aluminum enclosure (no rust, won't turn to dust) conduit/strain relief holes punched
    • 90o C connections
    • Fuseholders (MNTS) installed
    • 15a/600v fuses installed
    • Meets 2014 NEC 690.12
    • Warranty - 5 yrs.
    • Listed by ETL for US & Canada
    • Made in the USA
    • Disconnecting Combiner Brochure | Download
    • Rapid Shutdown Brochure | Download
    • ATM MNPV8HV and MNPV16HV Disco | Download
    • MNPSB Instructions | Download
    • HV Disconnecting Combiner Manual | Download
    • MNBirdhouse | Download
    Hardware Includes:
    • One MNSPD-600 (Surge Protection Device)
    • Sixteen 1/2" strain reliefs (MNSR-1000)
    • Twenty 1/2" LOCKNUTS
    • Fourteen HOLE PLUGS with Gaskets (MNHOLE PLUG 1/2)
    • Two 10-32 X 7/8" SCREWS
    • Two 10-32 X 3/6" SCREWS
    • Two 3/8 16 X 7/8" BOLTS
    • Twelve 10-32 KEPS NUT
    • One TERMINAL PIN 18-22 AWG.
    • One TERMINAL PIN 10-12 AWG.
    • One WHITE INSULATOR
    • One BLUE WRENCH (MNWRENCH)
    The difference between the regular Disco combiners and the DLTL version is that the MNPV16HV-Disco-4X is made for a single 16 string inverter, 2 8 sting inverters or one 8 string transformerless where as the DLTL is set up for 8 strings in and 2 strings out for Dual MPPT on transformerless
