Solar Panel Rapid Shutdown & Alarm - Manual Panel Shutdown to 0V Operated from Ground Level
- Automatic Panel Shutdown to 0V at >85C (185F) Temperature
- Automatic Panel Shutdown to 0V on External Power Loss
- Hardwire or Mobile Communication Alarm Signalling
- Compliant with NEC 2014 & NEC 2017
- Suitable for New Installations or Retro-Fit
- FireRaptor OBFRS-01 Specifications | Download
- FireRaptor OBFRS-01 Installation Guide | Download
- FireRaptor Quality Assurance Report | Download
- Outback FireRaptor Module Level Application Note | Download

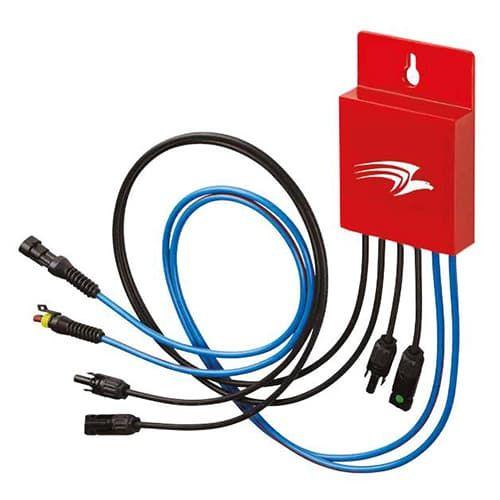

The OBFRS-01 is designed to shutdown two panels or it can be mounted in single panel configuration if preferred. The IMO FireRaptor shuts down DC supply at panel level to ZERO VOLTS in case of emergency. Shut-down is initiated in three ways - Manual Operation, External Power Loss or Temperature Rise Trigger as follows:
MANUAL OPERATION: Manual shutdown is initiated within less than 1 second of operation by pressing the emergency pushbutton on the Emergency Rapid Shutdown Switch (Part no FRS-ESWx). The Emergency Switch can be conveniently located at ground level for easy access or multiple switches can be installed in different multi-level building zones.
EXTERNAL POWER LOSS: Disconnection of the external AC supply, by whatever means, causes automatic remote operation of the Emergency Rapid Shutdown Switch and panel shutdown.
TEMPERATURE RISE TRIGGER: Automatic shutdown occurs if the temperature sensor onboard the FireRaptor detects an ambient temperature rise above 85C (185F). The FRS-01 shuts down only the panel(s) connected to it upon sensing an ambient temperature rise above 85C (185F). Provided the temperature does not exceed 92C (198F), the unit will re-engage the panel(s) if the temperature drops back below 85C (185F), otherwise a manual reset of the Emergency Switch is required.
Inverter Compatibility: The FireRaptor operates in the same way as an isolator/disconnect switch but is located at solar panel level. Like an isolator/disconnect, the FireRaptor is compatible with all string inverters and does not affect their operation or performance in any way.
