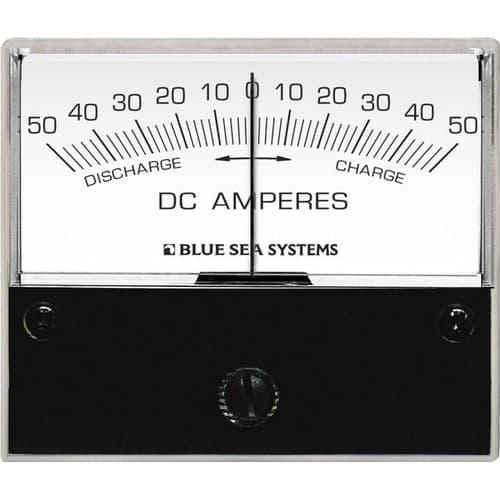

Blue Sea Systems, 8252, DC Ammeter - 50-0-50A with Shunt

Model: 8252
GTIN: 00632085082529
Manufactured by: Blue Sea Systems
Condition: New
Estimated Delivery: Apr 19th - Apr 25th

Estimated Delivery: 1 to 2 Weeks

In Stock
Out of Stock
Lead Time To Ship May Vary

Price:

$126.24 $97.11

Manufacturer Info

Other products

Features

Meters read both discharge and charge current
Simple 4-wire connection from shunt
Meter senses and powers from shunt connection
Includes appropriate DC shunt

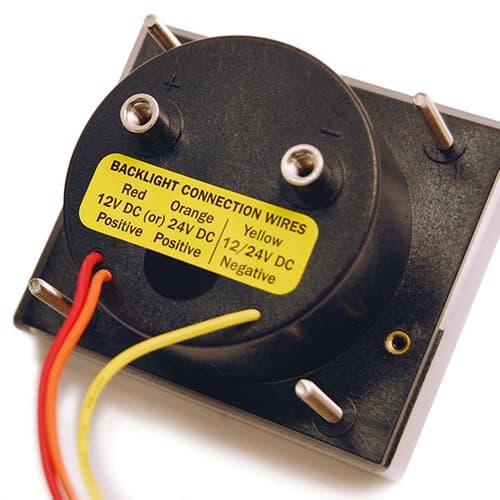

Backlit meter face (separate 12 or 24V DC backlight connections)
Instructions
Mounting Diagram (surface mount)
Mounting Diagram (panel mount)

Specifications
Meter	Current
Face Size	2.75in (69.85 mm)
Function	50 to 50A
Backlighting Amperage	16mA @ 12V DC20mA @ 24V DC
Meter Current	1mA at full scale
Shunt Type	External 50mV@full scale
Weight	0.58lb (0.26 kg)
