Manufacturer Info

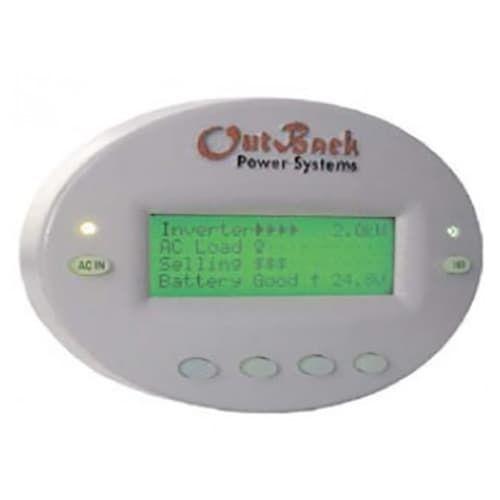

The MATE system display and controllers are complete management tools for your OutBack Power system. Through the use of a single MATE, you can remotely manage and monitor multiple inverter/chargers, MX60s and any future OutBack power conversion and control products.
The MATE and MATE2 are packed full of features to make system management simple. The easy-to-read 3.1" (8 cm) LCD is backlit for dark operating conditions. Four soft keys allow easy context-based navigation of menus and functions. Two hot keys give immediate access to AC and inverter functions.
A built-in clock and calendar function enables timer based programming of inverter and charger operation, allowing operators to set the system to work with time-of-day power rates or to limit a generator's runtime to a specific time period of the day or week. All of your settings are stored in permanent memory to eliminate the need to reprogram in the event of a system shutdown or battery replacement. The MATE and MATE2 include a RS232 port with DB9 jack for connection to the serial port of a PC computer. Through the use of optional WinVerter software, operators can perform actions such as data-logging and graphical display of the system's operation and performance. The MATE system display and controller is surface mounted while the MATE2 is flush mountable in a wall cut-out.
Product Highlights
The MATE and MATE2 are packed full of features to make system management simple. The easy-to-read 3.1" (8 cm) LCD is backlit for dark operating conditions. Four soft keys allow easy context-based navigation of menus and functions. Two hot keys give immediate access to AC and inverter functions.
A built-in clock and calendar function enables timer based programming of inverter and charger operation, allowing operators to set the system to work with time-of-day power rates or to limit a generator's runtime to a specific time period of the day or week. All of your settings are stored in permanent memory to eliminate the need to reprogram in the event of a system shutdown or battery replacement. The MATE and MATE2 include a RS232 port with DB9 jack for connection to the serial port of a PC computer. Through the use of optional WinVerter software, operators can perform actions such as data-logging and graphical display of the system's operation and performance. The MATE system display and controller is surface mounted while the MATE2 is flush mountable in a wall cut-out.
Product Highlights
- Simple system management
- Four soft keys allow easy context-based navigation of menus and functions
- Built-in clock and calendar function
- Two hot keys give immediate access to AC and inverter functions
- Product Specifications | Download
- Product Manual | Download
MATE Specifications | |
---|---|
Grey MATE | Surface mount with RS232 |
Black MATE_B | Surface mount with RS232 |
Black MATE2 | Flush mount without RS232 |
Interface Display | 3.1" (8 cm) backlit LCD - four line, 80 alpha numeric characters |
Control Keypad | 6 backlit silicone keys - dedicated inverter and AC input keys |
Status Indicators | Two LED Status Indicators - AC input (yellow), inverting (green) |
Communication Protocol | Proprietary OutBack Multi-drop using an OutBack HUB4 or HUB10 |
Interconnection Cabling | Standard CAT 5 network cable with RJ45 modular jack - 10' (3 m) included |
PC Computer Interface | RS232 opto-isolated DB9 jack 9600 baud serial communication |
Microprocessor | 16 MHz low power consumption version |
Setpoint and Data Memory | 32K non-volatile flash RAM |
Clock / Calendar | On-board real time clock with battery backup |
Environmental Rating | Indoor Type 1 |
Maximum Cable Length | 1000' (300 m) |
Warranty | Standard 2 year / Optional 5 year |
Shipping Weight | 1 lb (.5 kg) |
Shipping Dimensions (H x W x L) | 5.75 x 4.25 x 2" (15 x 11 x 5 cm) |
