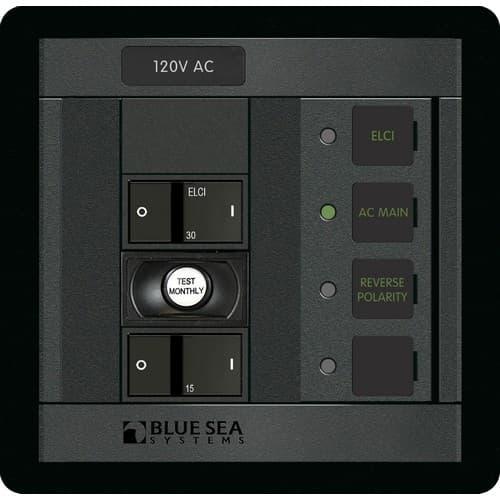

Blue Sea Systems, 1190, ELCI Main 30A Double Pole + 1 Position
The images shown are for illustration purposes only and may not be an exact representation of the product

Blue Sea Systems, 1190, ELCI Main 30A Double Pole + 1 Position

  • Model: 1190
  • GTIN: 00632085011901
  • Manufactured by: Blue Sea Systems
  • Condition: New
  • Estimated Delivery: 1 to 2 Weeks
  • Lead Time To Ship May Vary
Price:

$722.59 $555.84

Manufacturer Info

(image for) Blue Sea Systems
Features
  • One 30A AC ELCI Main Residual Current Circuit Breaker, leakage trip amperate - 30 mA
  • ELCI provides overcurrent and leakage protection per ABYC E-11 for whole boat shore power protection
  • One 15A AC Branch Flat Rocker Circuit Breaker
  • Red "Reverse Polarity" LED
  • Includes 4206 AC Panel Basic Square Format Label Set
  • All circuit label positions are backlit
  • "ON" indicating LEDs
  • Cutout Templates
  • Wiring Schematic
  • 360 Panel System Installation Manual
Specifications
Positions1
Nominal Voltage120V AC
Backlit LabelGreen LED
Height4.75in (120.65 mm)
Width4.88in (123.95 mm)
Depth3.99in (101.35 mm)
Weight1.00lb (0.45 kg)
Included
QtyPNProduct
17403A-Series Flat Rocker Circuit Breaker - Single Pole 15A
13102100A-Series ELCI Main Circuit Breaker - Double Pole 120V AC 30A
Optional Accessories
1331AC Insulating Cover 1 Module
