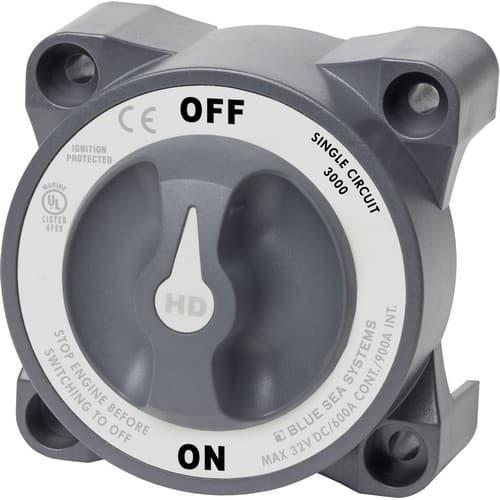

Blue Sea Systems, 3000, HD-Series Heavy Duty On-Off Battery Switch

The images shown are for illustration purposes only and may not be an exact representation of the product

Blue Sea Systems, 3000, HD-Series Heavy Duty On-Off Battery Switch

Model: 3000
GTIN: 00632085030001
Manufactured by: Blue Sea Systems
Condition: New
Estimated Delivery: May 3rd - May 9th
Estimated Delivery: 1 to 2 Weeks
In Stock
Out of Stock
Lead Time To Ship May Vary

Price:

$153.12 $117.78

Manufacturer Info

Other products

Switches a single battery to a single load group

Ignition protected - safe for installation aboard gasoline powered boats

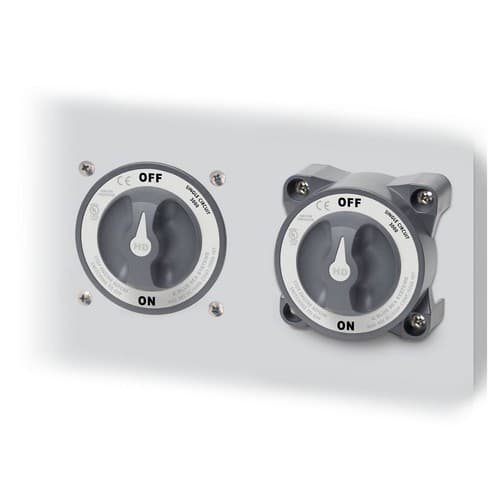

Case design allows surface or rear panel mounting
Accepts two 4/0 AWG (95mm2) battery cables
Instructions
Dimensioned Drawing
Mounting Diagram

Specifications
Switch Type	Single Circuit ON-OFF
Color	Grey
Switch Positions	2
Battery Combine	No
Alternator Field Disconnect	No
Maximum Voltage	32V DC
Terminal Stud Torque	220 in-lb (24.86 Nm)
Continuous Rating	600A
Intermittent Rating	900A (5 min)
Cranking Rating 30 sec	1750A
Battery Inputs	1
Cable Clearance For 4/0 AWG Cables	1.10in (27.94 mm)
Cable Quantity to Meet Ratings	Two Cables
Cable Size to Meet Ratings	4/0 AWG (120mm2)
Mounting Holes	Accept 1/4" (M6) Screw
Terminal Stud Size	1/2" (M12)
Weight	1.30lb (0.59 kg)
