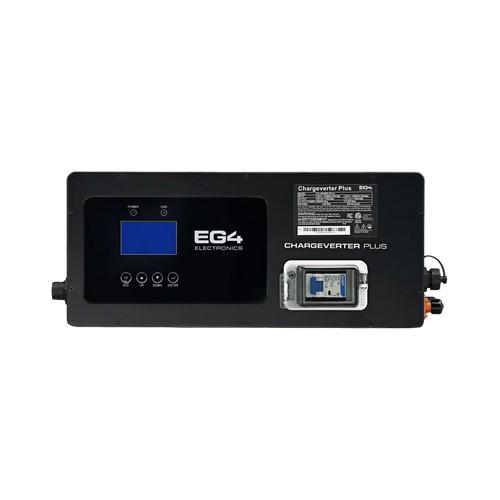

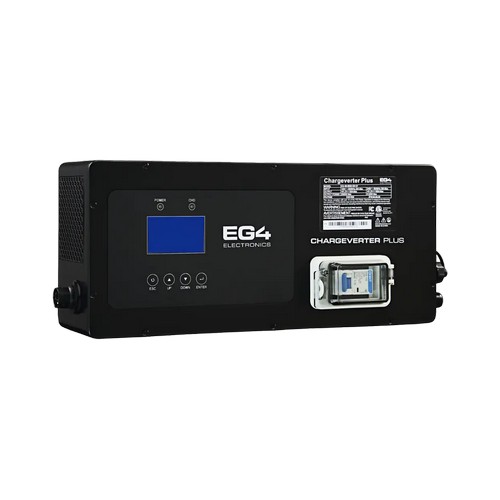

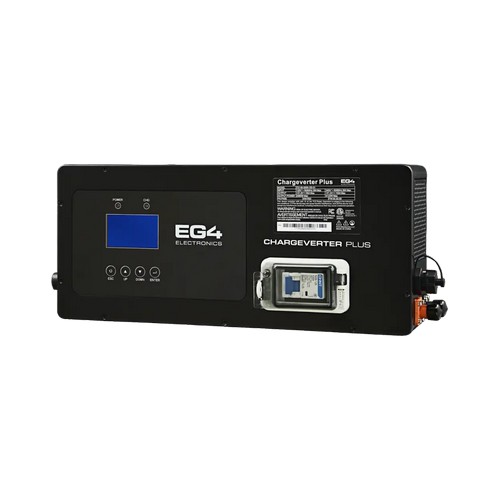

EG4 Chargeverter Plus

The Chargeverter Plus (EG4CV48V100AIP54) is a UL certified AC to DC converter delivering a stable, 48V DC power output up to 5 kW. Paired with an EG4 ESS, the solution enables seamless integration of high THD power sources, such as small generators or dirty grid power, delivering power conditioning and UPS functionality.

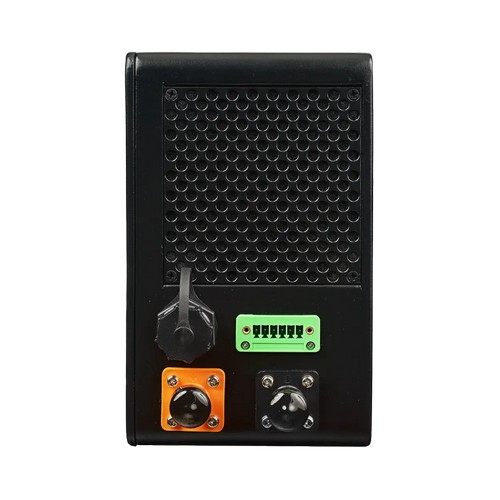

The IP54 rated enclosure of the Chargeverter Plus enables covered outdoor installations even in extreme temperature conditions, with quick connect power and communication ports, enabling fast and easy installation.

• EG4 Chargeverter Plus – User Manual v1.0.1 | Download
• EG4 Chargeverter Plus – Spec Sheet | Download

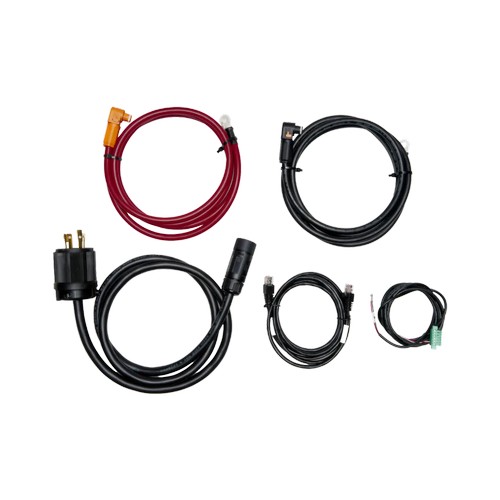

• EG4 Chargeverter Adapter Cables – Quick Start Guide | Download

Features & Benefits

UL Certified Power Conversion
Delivers safe, reliable AC-to-DC charging with a stable 48V DC output up to 5 kW.

High-THD Source Compatibility
Conditions “dirty” generator or unstable grid power for smoother charging and improved performance.

Outdoor-Ready Protection (IP54 Rated)
Supports covered outdoor installations with enhanced protection against dust and water exposure.

Extreme Temperature Operation
Built to perform in harsh environments from -40°F to 131°F.

Generator Two-Wire Start + Programmable Warm Up/Cool Down
Enables automated generator control and smarter run cycles for improved efficiency and reliability.

Key Specifications

• Charger Output: Stable AC-to-DC conversion for battery charging
• Nominal Battery Voltage: 48VDC
• Max Continuous Charge Current: 100A at 240VAC, 50A at 120VAC
• Battery Voltage Range: 40–60VDC
• Maximum Output Watts: Up to 5,000W
• AC Input: Compatible with generators and high-THD / unstable grid power
• Operating Temperature Range: -40°F to 131°F
