EG4 GridBOSS

• Simple Install
• 4-Smart Ports
• EG4 Connect

Every other MID; made simple.

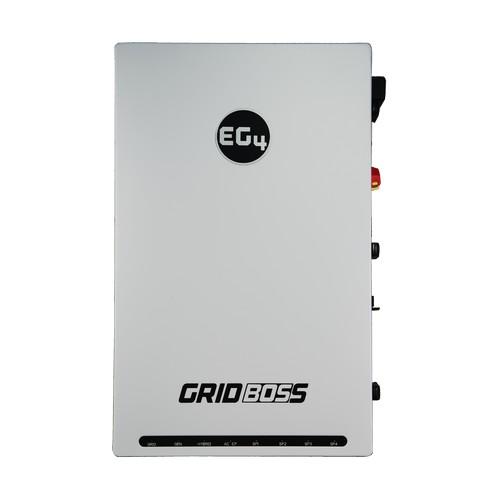

The EG4 GridBOSS beats every Microgrid Interconnect Device (MID) / power gateway on the market in terms of capabilities and ratings. The GridBOSS simplifies the design and operation of complex solar installations, reducing hardware costs and installation time. Featuring four intelligent ports for AC coupling or smart load management up to 125 Amps, it consolidates multiple electrical components into a single device with a 200A service entrance rating.

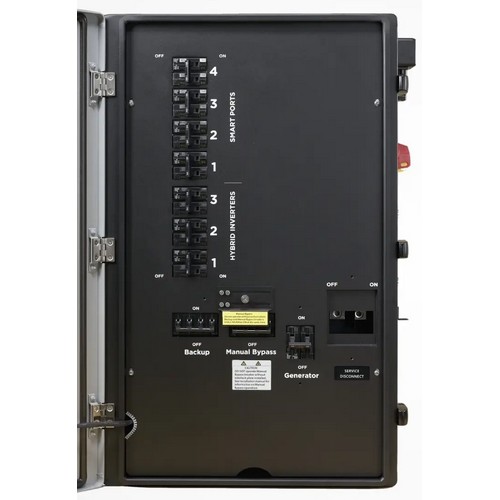

The GridBOSS serves as a centralized connection point for utility power, up to three 90A hybrid inverters, four programmable smart/AC-couple ports, and a generator (up to 125 Amps). It is rated for 200 Amps for both backed-up and non-backed-up loads, ensuring seamless operation under high load conditions and continuous power to essential loads during grid outages.

When paired with the FlexBOSS21, the GridBOSS significantly reduces installation expenses by eliminating extra components and installation time, making it an efficient, cost-effective solution for whole or partial home backup and microgrid setups.

** smart port, hybrid inverter, and generator breakers sold separately

• EG4 GridBOSS Hardware Model 03 – User Manual v2.0.5 | Download
• EG4 GridBOSS Hardware Model 03 – User Manual (Spanish) v2.0.4 | Download
• EG4 GridBOSS Hardware Model 01 & 02 – User Manual v1.2.1 | Download
• EG4 GridBOSS – Spec Sheet v1.1.6 | Download
• EG4 GridBOSS – Spec Sheet (Spanish) v1.1.6 | Download

Features & Benefits

Simplified Integration
Single connection point for utility, inverters, generator, and loads

Cost-Effective
Saves up to $7,500 by reducing equipment and installation time

200A Service Entrance Rating
Combines components, saving labor and simplifying installation

200A Backup and Non-Backup Support
Ensures reliability for critical systems

Smart Load Ports
Four configurable ports (125, 80, 60, 60 Amps)

Advanced Port Programming
Five drivers for optimized load management

Energy Flow Monitoring & Compatibility
Monitors eight circuits, supports generators, and integrates with EG4 inverters

Key Specifications

• Service Entrance rated: up to 200A, 22kAIC
• 200A Service: 200A Backed-Up Loads plus 200A Non-Backed-Up Loads
• Hybrid Inverters: supports up to three, at up to 90 Amps each
• AC Couple / Smart Ports: 4 ports for either Smart Loads or AC Couple at 125A, 80A, 60A, and 60A: up to 125A.
• Generator: up to 125A (30 kW)
• Dimensions: 31.5×19.7×7.0 in.
• Weight: 60 lbs
• Warranty: 10 years
