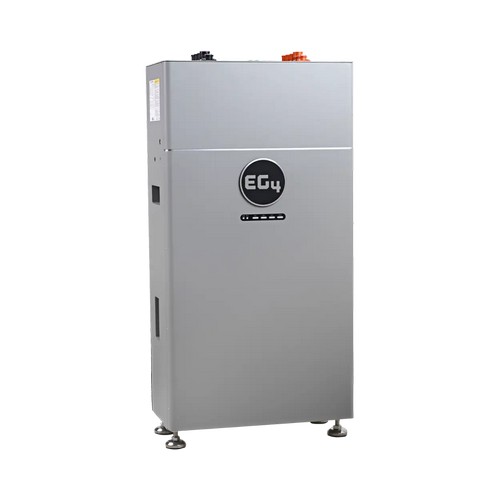

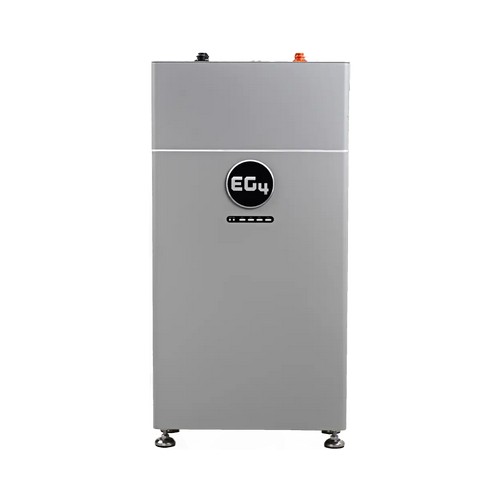

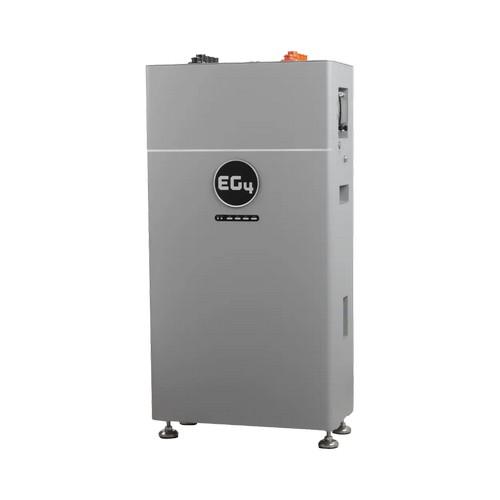

EG4 WallMount 314Ah Indoor BatterySmart power. Simple reliability.Whether you want lower energy costs or more control during outages, the EG4 WallMount 314Ah Indoor Battery delivers dependable whole-home backup in a compact design. With 16.0 kWh of storage capacity and 200A continuous output, it provides consistent performance for your home or small business — all while fitting seamlessly into your indoor setup.
Built with advanced safety features, efficient self-heating for colder climates, and an intuitive monitoring interface, this wall-mounted battery makes energy storage simple, safe, and reliable. Backed by a 10-year warranty and rated for 10,000+ cycles at 80% depth of discharge, it’s a long-term energy solution you can trust.
Features & BenefitsHybrid Wall or Floor Mount DesignFlexible installation options with a durable, space-saving enclosure (IP20 rated).
High-Capacity Storage16 kWh nominal energy and 314Ah capacity for reliable, high-output performance.
200A Continuous Output / 12.8kW Peak PowerSupports heavy household loads and seamless backup operation.
Self-Heating FunctionMaintains optimal performance and battery health in cold environments.
Third-Generation BMSProvides advanced monitoring, improved balancing precision, and faster response times for greater safety and system efficiency.
Auto-ID TechnologyAutomatically recognizes and syncs new batteries during installation, simplifying system setup and configuration.
Cross-Compatible with Other EG4 ModelsSeamlessly integrates with existing EG4 battery systems for flexible scaling and expanded storage capacity. Core Benefits
Built for LongevityRated for 10,000+ cycles at 80% DoD with up to 115.7 MWh lifetime energy throughput.
Quiet, Compact, and EfficientNatural convection cooling ensures silent operation and a low-profile wall mount for tight indoor spaces.
HBacked by Real Support10-year warranty and U.S.-based technical assistance for long-term reliability and confidence.
Key Specifications - Nominal Voltage: 51.2V
- Capacity: 314Ah
- Energy Storage: 16.0 kWh
- Maximum Continuous Output: 200A
- Dimensions: 36.4 × 18.1 × 9.6 in (92.5 × 46 × 24.5 cm)
- Weight: 314 lbs (142 kg)
- Cycle Life: 10,000 cycles @ 80% DoD
- Certifications: UL 1973
- Lifetime Energy Throughput: 115.7 MWh
- Warranty: 10 years
- EG4 WallMount 314Ah Indoor Battery – Quick Start Guide v1.0.5 | Download
- EG4 WallMount 314Ah Indoor Battery – Spec Sheet v1.0.3 | Download
- EG4 WallMount 314Ah Indoor Battery – User Manual v1.0.2 | Download
