XR Rail Family
Strength runs in the family.

XR Rails are the structural backbone of IronRidge pitched, flat and ground-based arrays. Their signature curve helps them to resist uplift, protect against buckling and safely and efficiently transfer loads into the building structure.

Their superior spanning capability requires fewer roof attachments, reducing the number of roof penetrations and the amount of installation time. Each size supports specific design loads, while minimizing material costs. Depending on your location, there is an XR Rail to match.

• XR Rail Tech Brief | Download
• XR10 Cut Sheet | Download
• XR100 Cut Sheet | Download
• XR1000 Cut Sheet | Download
• XR10 BOSS Cut Sheet | Download
• XR100 BOSS Cut Sheet | Download
• XR1000 BOSS Cut Sheet | Download
• Tech Tip: Rail Cantilever | Download
• Tech Tip: Rail Anodization | Download

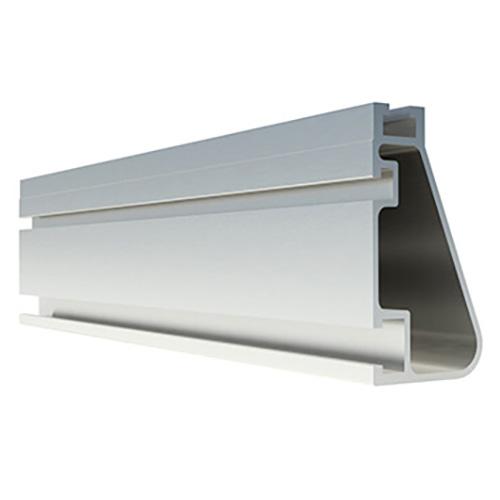

Force Stabilizing Curve

• The curved shape of XR Rails is specially designed to increase strength in both directions while resisting the twisting. This unique feature ensures greater security during extreme weather and a longer system lifetime.

6000-Series Aluminum

• All XR Rails are made of 6000-series aluminum alloy, with anodized options offered as well - to prevent corrosion and provide a more attractive appearance. Available in mill and black-anodized finish.

Bonded Structural Splices

• The BOSS (Bonded Structural Splice) provides a strong connection for linking multiple XR Rails®. No assembly, tools, or hardware required. The built-in bonding spring bites into rail, meeting all UL standards.

XR10 RAIL
XR10 is a sleek, low-profile mounting rail, designed for regions with light or no snow. It achieves 6 foot spans, while remaining light and economical.

• 6' spanning capability
• Moderate load capability
• Mill & black-anodized finishes
• Internal splices available

XR100 RAIL
XR100 is the ultimate residential mounting rail. It supports a range of wind and snow conditions, while also maximizing spans up to 8 feet.

• 8' spanning capability
• Heavy load capability
• Mill & black-anodized finishes
• Internal splices available

XR1000 RAIL
XR1000 is a heavyweight among solar mounting rails. It's built to handle extreme climates and spans up to 12 feet for commercial applications.

• 12' spanning capability
• Extreme load capability
• Mill, non-anodized finish
• Internal splices available
