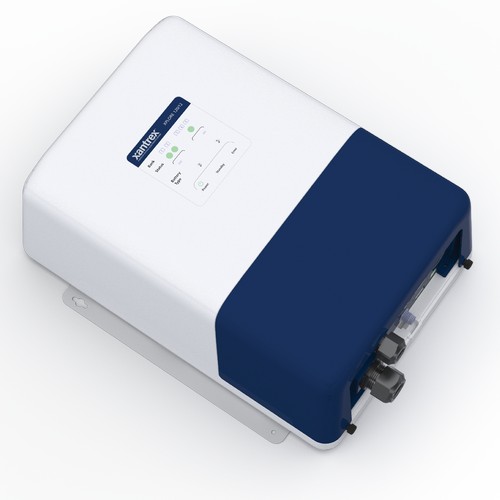

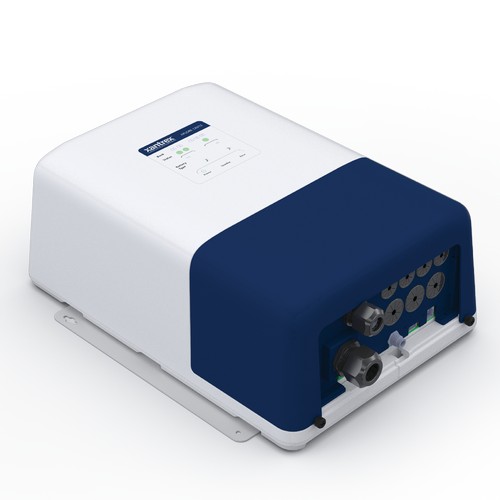

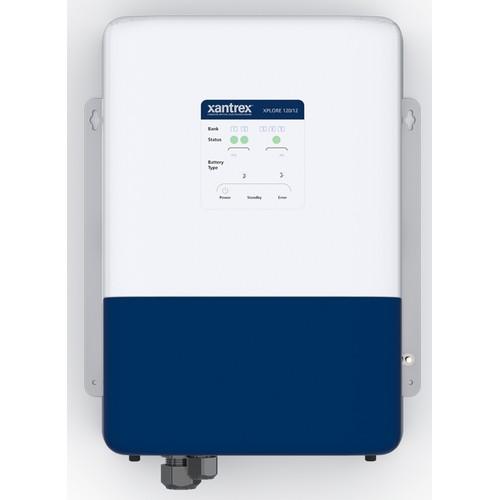

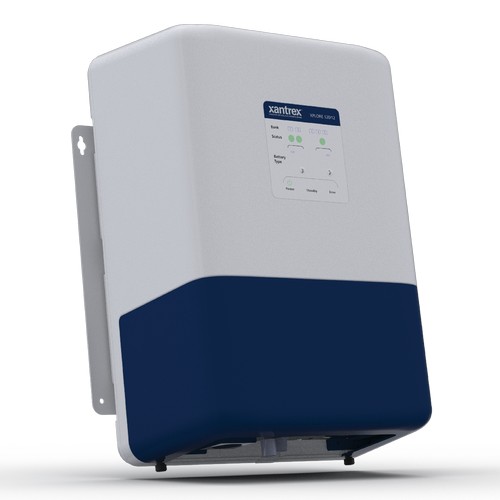

Battery Charger XPLORE 120All charging needs in one chargerThe XPLORE 120/12 battery charger is the largest and most powerful charger in the market today. The universal, auto-ranging AC input and 120 amps of output current ensures ultra-fast and reliable worldwide charging. With up to six output banks of simultaneous charging combined with the ability to charge two battery banks with differing chemistries, the XPLORE 120/12 eliminates the need to have separate single-chemistry chargers and minimizes installation and wiring costs for your house bank and engine bank.
It is also equipped with an easy-to-read front panel LED display for basic configuration and status information. Advanced monitoring and configuration is enabled by NMEA 2000 protocol or Xantrex app using the Xantrex BLE module.
- Xplore 120/12 Datasheet | Download
- Owners Guide – English | Download
- Owners Guide – French | Download
- BLE Module Quickstart Guide – English | Download
- EU Declaration of Conformity – Xplore 120/12 Battery Charger | Download
- EU Declaration of Conformity – Xantrex BLE Module | Download
Certifications- CSA E60335-2-29, UL1564, and UL1236 including the Marine Supplement and drip test
- CE Marked for the Low Voltage Directive (safety) and the EMC Directive
- Complies with IEC 60335-2-29 including Australian deviations
- Ingress protection rating IP32 per EN/IEC 60529
- Complies with FCC Part 15B and Industry Canada ICES-003 Class B emissions limits. Complies with ABYC A-31
ApplicationsAvailable in- XPLORE Charger - 120A/12V - PN: 819-0120-12
Features- Six battery bank charging
- Dual battery chemistry charging
- Designed to charge Lithium-Ion batteries
- Ability to charge dead batteries down to 0V
- NMEA 2000 monitoring and configuration
- Xantrex App monitoring and configuration
