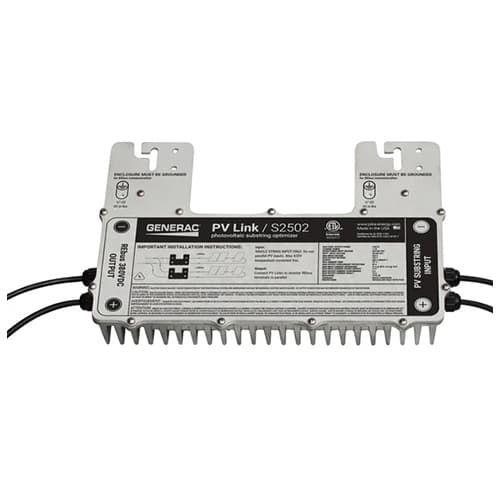

Generac, APKE00010, PV Link, APKE00010, DC Optimizer, 2500W, Mc4 In/Mc4 Out

  • Model: APKE00010
  • Manufactured by: Generac
  • Condition: New
  • Estimated Delivery: May 3rd - May 9th
  • In Stock
Price:

$813.21 $625.55

Manufacturer Info

(image for) Generac
Model Number: APKE00010
PV Link - 2500W MPPT Substring Optimizer
  • Rated Power: 2500 W
  • MPPT Voltage Range: 60 - 360 VMP
  • Max Input Voltage (when cold): 420 VOC
  • Nominal Output Voltage: 380 VDC
  • Maximum Output Current: 8 A
  • Max Short Circuit Current (ISC): 18 A
  • Protections: Ground-fault, Arc-fault (Type 1 AFCI, Integrated)
  • Peak Efficiency: 99%
  • Maximum Operating Temperature: 70 C (158 F)
  • Dimensions: 51 x 391 x 244 mm (2" x 15.4" x 9.6")
  • Compliance: UL 1741, CSA 22.2
  • LINE DIAGRAMS PV LINK & SNAPRS | Download
  • MANUAL-PV LINK INSTALLATION EN | Download
  • MANUAL-PV LINK INSTALLATION SP | Download
  • MANUAL-PV LINK INSTALLATION FR | Download
  • LINE DIAGRAMS PWR CELL | Download
  • SPEC PV LINK 2500W SUBSTRNG OPTMZR EN | Download
  • PWAR PWRCELL LIMITED WARRANTY | Download
