Outback Power, FW500-DC, DC breaker enclosure - fits at the DC side of one or two FXR Series Inverter/Chargers. Includes ground bus bar, 500 Amp DC shunt assembly with negative TBB breaker mounting screws - holds up to eight 1 to 80 Amp, three 100 or 125 Amp and two 175 or 250 Amp panel mount breakers (not included)

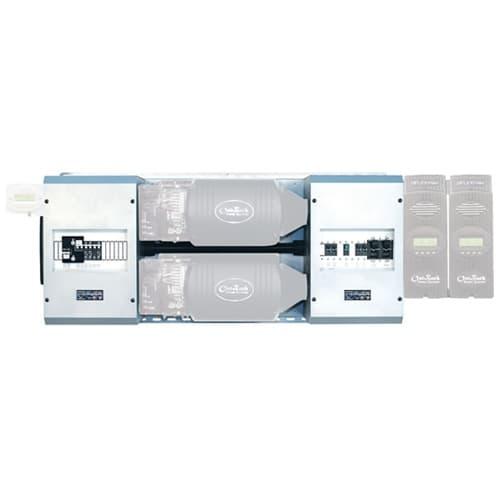

The images shown are for illustration purposes only and may not be an exact representation of the product

Outback Power, FW500-DC, DC breaker enclosure - fits at the DC side of one or two FXR Series Inverter/Chargers. Includes ground bus bar, 500 Amp DC shunt assembly with negative TBB breaker mounting screws - holds up to eight 1 to 80 Amp, three 100 or 125 Amp and two 175 or 250 Amp panel mount breakers (not included)

  • Model: FW500-DC
  • Manufactured by: Outback Power
  • Condition: New
  • Estimated Delivery: Jul 9th - Jul 15th
  • In Stock
Price:

$565.81 $435.24

Would you like to add these items to your order?
Outback Power, HUB4, Four Port, up to 4 devices and one MATE  $266.48 $204.98

Outback Power, MATE3s, Universal version required by (V)FXR and GS inverters, Dark gray square housing with Ethernet port  $731.91 $563.00

Outback Power, HUB10.3, Ten Port with Sub-Phase Master Stacking, up to 10 devices and one MATE  $498.28 $383.29

Manufacturer Info

(image for) Outback Power
The FLEXware 500 is for applications with medium power requirements such as homes, light commercial or larger backup power systems. The FLEXware 500 system architecture can support up to two OutBack FX Series Inverter/Chargers, up to two OutBack charge controllers and all the associated AC and DC components. Due to a very compact design, FLEXware 500 AC and DC enclosures mount with a FLEXware MP in either a horizontal or vertical orientation to allow installation in more space-limited locations for a fast and professional looking wall-mounted installation. The FLEXware 500 accommodates all of the essential protective devices in two enclosures.

Product Highlights
  • Supports up to two OutBack FX Series Inverter/Chargers
  • Up to two OutBack charge controllers and all the associated AC and DC components
  • Compact design
  • Horizontal or vertical orientation
  • FLEXware ACA AC Conduit Adapter User's Guide | Download
  • FLEXware Mounting Plate User's Guide | Download
  • FLEXware 500 User's Guide | Download
  • FW-IOB-D-120VAC Input/Output/Bypass Assembly - Installation Instructions | Download
  • FW-IOB-D-120/240VAC Input/Output/Bypass Assembly - Installation Instructions | Download
  • FW-IOB-D-230VAC Input/Output/Bypass Assembly - Installation Instructions | Download
  • FLEXware MATE3 Mounting Bracket - Installation Instructions | Download
Unit Dimensioins 18.2 x 11.4 x 12.1" (46.2 x 29 x 30.7 cm)
Shipping Dimensions 14.5 x 13.4 x 20.3" (36.8 x 34.1 x 51.6 cm)
Shipping Weight 15 lbs. (6.8 kg)
Enclosure Type Type-1 indoor (IP30)
