Manufacturer Info
Note: *** This Product Is 230 VAC Output, European Voltage, Not For Use In The U.S.A ***

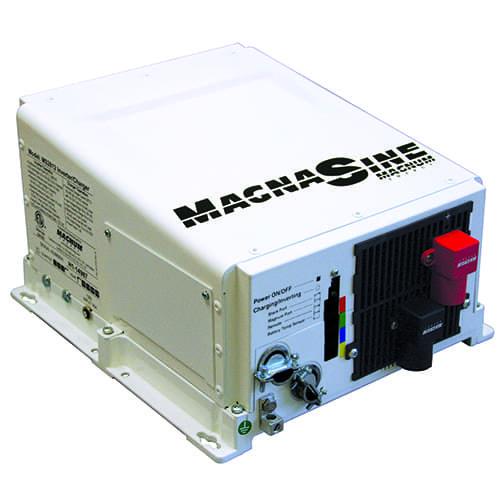

Magnum Energy now offers the MS-E Series Inverter/Charger for 230 VAC/50 Hz installations. The MS-E Series comes with all of the features you've come to expect from a Magnum product.
Features
Magnum Energy now offers the MS-E Series Inverter/Charger for 230 VAC/50 Hz installations. The MS-E Series comes with all of the features you've come to expect from a Magnum product.
Features
- Standard transfer relay
- Low/high battery protection
- Versatile mounting
- Fan cooled
- Current overload protection
- Convenient switches
- Circuit breaker protection
- Battery temp sensor
- Product Specifications | Download
- Product Manual | Download
Output Power | 2,700W |
---|---|
Peak Watts | 4,100W |
Warranty | 2 Years |
Output Voltage | 230 VAC |
Output Peak | 45amps |
Output Current | 12amps |
Output Waveform | Pure Sine |
Output Frequency | 50 Hz |
Motor Starting Capacity | NA |
Input Voltage | 12 |
Continuous Output Amps | 12amps |
Operating Temp | -20 C to +60 C (-4 F to 140 F) |
Efficiency | 89% |
Weight | 55 lbs (25 kg) |
Dimensions | 34.9 cm x 32.1 cm x 20.3 cm (13.75” x 12.65” x 8.0”) |
UL Certified | Yes |
Phase | Single |
Topology | Low Frequency |
Input Battery Voltage Range | 9-17 |
