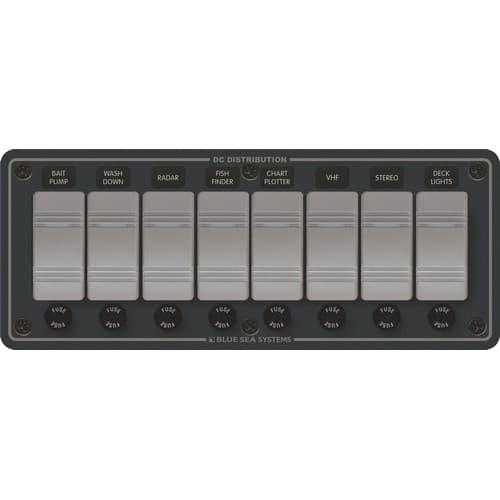

Blue Sea Systems, 8261, Contura Water Resistant 12V DC Panel - 8 Position
Manufacturer Info
Features
- Will withstand the water exposures normally encountered in above deck applications: salt spray, rain, hose washdowns, momentary immersions
- ON-OFF Contura Switches
- ON indicating LEDs embedded in switches
- Cutout Templates
- Cutout Templates
| Specifications | |
|---|---|
| Weatherproof | Water Resistant |
| Positions | 8 |
| Nominal Voltage | 12V DC24V DC |
| Panel Cumulative Rating | 90A |
| Switch Rating | 20A @ 12V DC15A @ 24V DC |
| Height | 3.75in (95.25 mm) |
| Width | 9.37in (238 mm) |
| Depth | 3.00in (76.2 mm) |
| Weight | 1.40lb (0.64 kg) |
| Included | ||
|---|---|---|
| Qty | PN | Product |
| 8 | 5021 | Panel Mount AGC/MDL Fuse Holder |
| 1 | 8214 | Black 60 Label Set |
| 8 | 8230 | Contura Switch SPST Gray - OFF-ON |
| Optional Accessories | |
|---|---|
| 1039 | Fast Charge - Dual USB Charger Switch Mount |
