Manufacturer Info

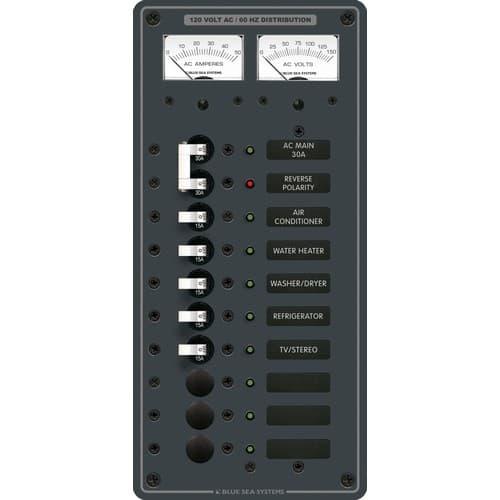

Features
- Red reverse polarity indicating LED
- All hot, neutral and safety ground buses installed, fully pre-wired
- All circuit label positions are backlit on standard panels - No kit required
- "ON" indicating LEDs installed in all circuit positions
- Cutout Templates
- Cutout Templates
| Specifications | |
|---|---|
| Positions | 8 |
| Nominal Voltage | 120V AC |
| Height | 11.25in (285.75 mm) |
| Width | 5.25in (133.35 mm) |
| Weight | 3.28lb (1.49 kg) |
| Included | ||
|---|---|---|
| Qty | PN | Product |
| 9 | 8034 | LED - 120V AC Green |
| 1 | 8066 | LED - 120V AC Red |
| 1 | 8031 | Basic AC Panel Label Set - 30 Labels |
| 5 | 7210 | A-Series White Toggle Circuit Breaker - Single Pole 15A (Branch) |
| 1 | 7238 | A-Series White Toggle Circuit Breaker - Double Pole 30A (Main) |
| 1 | 8246 | AC Micro Ammeter - 0 to 50A with Coil (Meter) |
| 1 | 8244 | AC Micro Voltmeter - 0 to 150V AC (Meter) |
