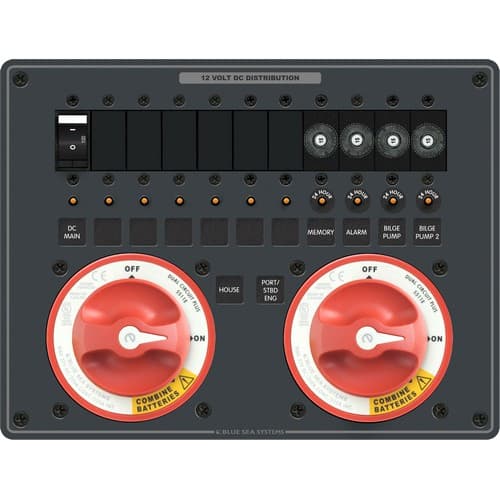

Blue Sea Systems, 8693, Triple Battery Bank Management Panel
The images shown are for illustration purposes only and may not be an exact representation of the product

Blue Sea Systems, 8693, Triple Battery Bank Management Panel

  • Model: 8693
  • GTIN: 00632085086930
  • Manufactured by: Blue Sea Systems
  • Condition: New
  • Estimated Delivery: 1 to 2 Weeks
  • Lead Time To Ship May Vary
  • Price: $654.11  $503.16
    Features
    • Includes [2] e-Series, Dual Circuit Plus Battery Switches PN 5511e
    • Designed for twin engine configurations
    • Provides high ampere load protection
    • Isolates the Engine circuit from the House circuit
    • Allows independent battery control
    • Provides 24-hour circuit protection
    • Allows emergency cross connect between isolated battery banks
    • Protects electronics from sags and spikes caused by engine cranking
    • The addition of two Automatic Charging Relays (ACR) automates charging three battery banks
    • Ignition protected - Safe for installation aboard gasoline-powered boats
    • Includes 4218 - Square Format Labels and 4140 - 24 Hour Round Labels
    • Cutout Templates
    • Instructions
    Specifications
    Positions11
    Nominal Voltage12V DC
    Maximum Voltage24V DC
    Continuous Rating350A
    Intermittent Rating525A (5 min)
    Cranking Rating 10 sec1000A
    Cranking Rating 1 min750A
    Height8.00in (203.2 mm)
    Width10.50in (266.7 mm)
    Depth3.50in (88.9 mm)
    Weight4.42lb (2 kg)
    Included
    QtyPNProduct
    25511ee-Series Dual Circuit Plus Battery Switch
    47056Push Button Reset Only Quick Connect Circuit Breaker - 15 Amps
    17549C-Series Flat Rocker Circuit Breaker - Single Pole 100A
