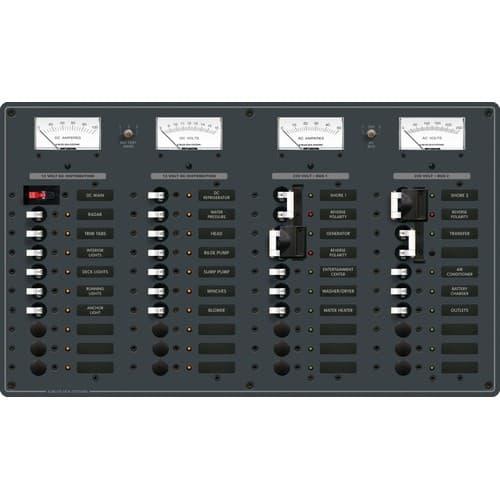

![Blue Sea Systems, 8186, AC 2 Sources + 12 Positions/DC Main + 19 Positions [European]](/images/blue_sea/8186.jpg)
Blue Sea Systems, 8186, AC 2 Sources + 12 Positions/DC Main + 19 Positions [European]
Manufacturer Info
Features
- All AC and DC buses installed and fully pre-wired
- Label backlighting pre-installed
- ON - indicating LEDs installed in all circuit positions
- 100 Ampere C-Series Toggle Circuit Breaker provides main circuit protection and switching for DC branch
- Cutout Templates
- Cutout Template
| Specifications | |
|---|---|
| Positions | 12 AC19 DC |
| Source Selection | 2 AC |
| Nominal Voltage | 230V AC12V DC |
| Height | 11.50in (292.1 mm) |
| Width | 19.50in (495.3 mm) |
| Depth | 3.00in (76.2 mm) |
| Weight | 12.45lb (5.65 kg) |
| Included | ||
|---|---|---|
| Qty | PN | Product |
| 6 | 7299 | A-Series White Toggle Circuit Breaker - Single Pole 8A (AC Branch) |
| 1 | 7295 | A-Series White Toggle Circuit Breaker - Double Pole 32A (AC Main) |
| 2 | 7294 | A-Series White Toggle Circuit Breaker - Double Pole 16A (AC Main) |
| 1 | 9354 | AC Voltmeter - 0 to 250V AC (AC Meter) |
| 1 | 9630 | AC Ammeter - 0 to 50A with Coil (AC Meter) |
| 1 | 7294 | A-Series White Toggle Circuit Breaker - Double Pole 16A (AC Transfer) |
| 13 | 7210 | A-Series White Toggle Circuit Breaker - Single Pole 15A (DC Branch) |
| 1 | 7250I | Circuit Breaker CA1 100A Red IP (DC Main) |
| 1 | DC Analog Voltmeter - 8 to 16V DC (DC Meter) | |
| 1 | 8017 | DC Analog Ammeter - 0 to 100A with Shunt (DC Meter) |
| Optional Accessories | |
|---|---|
| 4031 | AC Isolation Cover - 10 Position, 2 Columns |
