The images shown are for illustration purposes only and may not be an exact representation of the product

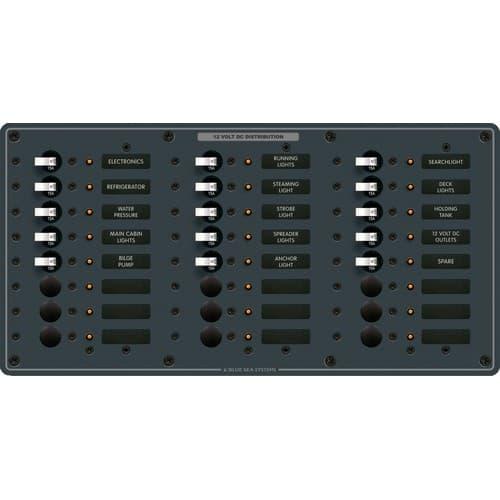

Blue Sea Systems, 8264, Traditional Metal DC Panel - 24 Positions
- Model: 8264
- GTIN: 00632085082642
- Manufactured by: Blue Sea Systems
- Condition: New
-
Estimated Delivery:
Dec 6th - Dec 12th
- Estimated Delivery: 1 to 2 Weeks
- In Stock
- Out of Stock
-
Lead Time To Ship May Vary
Features- All positive, negative and grounding buses installed, fully pre-wired
- Panels with meters include toggle switch for mounting up to 3 battery banks
- All panels with analog meters are owner upgradable to 24 Volts with 8240 or 8243 (18-32V DC meters)
- All circuit label positions are backlit on standard panels - No kit required
- "ON" indicating LEDs installed in all circuit positions
- Cutout Templates
- Cutout Template
Specifications | Positions | 24 |
Nominal Voltage | 12V DC24V DC |
Maximum Amperage | 100A per bus |
Height | 7.50in (190.5 mm) |
Width | 14.75in (374.65 mm) |
Weight | 7.45lb (3.38 kg) |
Included | Qty | PN | Product |
1 | 8030 | Basic DC Panel Label Set - 30 Labels |
15 | 7210 | A-Series White Toggle Circuit Breaker - Single Pole 15A (Branch) |
