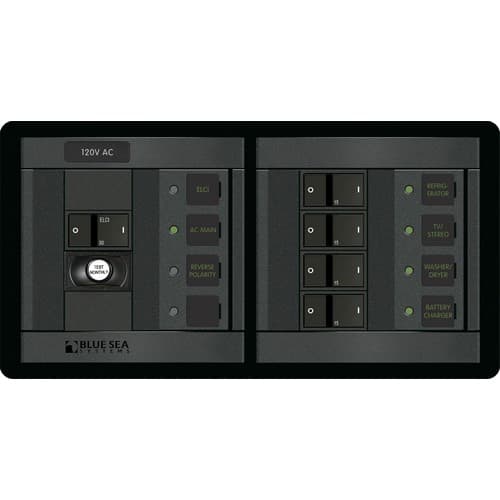

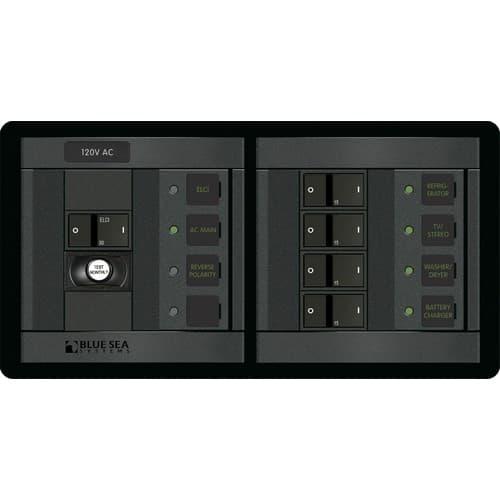

Blue Sea Systems, 1193, ELCI Main 30A Double Pole + 4 Positions Horizontal
Manufacturer Info
Features
- One 30A AC ELCI Main Residual Current Circuit Breaker, leakage trip amperate - 30 mA
- ELCI provides overcurrent and leakage protection per ABYC E-11 for whole boat shore power protection
- Four 15A AC Branch Flat Rocker Circuit Breakers
- Red "Reverse Polarity" LED
- Includes 4206 AC Panel Basic Square Format Label Set
- All circuit label positions are backlit
- "ON" indicating LEDs
- Cutout Templates
- Instructions
- 360 Panel System Installation Manual
| Specifications | |
|---|---|
| Positions | 5 |
| Nominal Voltage | 120V AC |
| Height | 4.75in (120.65 mm) |
| Width | 9.25in (234.95 mm) |
| Depth | 3.99in (101.35 mm) |
| Weight | 1.00lb (0.45 kg) |
| Included | ||
|---|---|---|
| Qty | PN | Product |
| 4 | 7403 | A-Series Flat Rocker Circuit Breaker - Single Pole 15A (Branch) |
| 1 | 3102 | 30A Double Pole Residual Current Circuit Breaker [ELCI] (Main) |
| Optional Accessories | |
|---|---|
| 1331 | AC Insulating Cover 1 Module |
