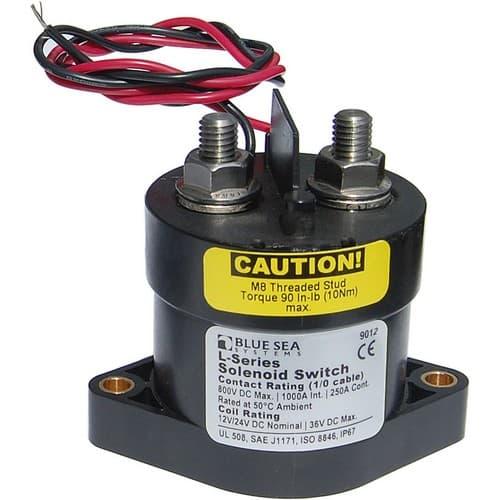

Blue Sea Systems, 9012, L Solenoid - 12/24V DC 250A

  • Model: 9012
  • GTIN: 00632085090128
  • Manufactured by: Blue Sea Systems
  • Condition: New
  • Estimated Delivery: 1 to 2 Weeks
  • Lead Time To Ship May Vary

$320.94 $246.88

Manufacturer Info

  • Hermetically sealed contacts / vaporproof
  • Ignition protected - safe for installation aboard gasoline powered boats
  • Activated by an ON-OFF switch mounted anywhere
  • integrated coil control minimizes heating and amperage draw
  • 450 Amp Class
  • Designed for 12 or 24 Volt systems
  • Ignition protected -- safe for installation aboard gasoline-powered boats
  • Activated by a low amperage ON-OFF switch mounted anywhere
Control Circuit Connection20 AWG Tinned Wire
Nominal Voltage12V DC24V DC
Coil FunctionNormally Open
Operating Amperage Current3.6A when changing state
Amperage Operating Current continuous0.13A @ 12 V0.07A @ 24 V
Terminal Stud Torque90 in-lb (10.17 Nm)
Continuous Rating250A300A400A450A
Intermittent Rating275A (5 min)400A (5 min)500A (5 min)600A (5 min)
Cranking Rating 30 sec1,000A1000A DC
Contact FormSPST-NO
Input Voltage9-36V DC
Inrush Rating: 0.25 sec (10 repeats)2000A
Switching Cycles1,000,000
Terminal StudSerrated Flange Nut
Terminal Stud Length0.66in (16.76 mm)
Terminal Stud Size5/16" (M8)
Weight1.00lb (0.45 kg)
Previous versions of this product
The circuit board is now hermetically sealed within the solenoid and is rated IP67 waterproof
