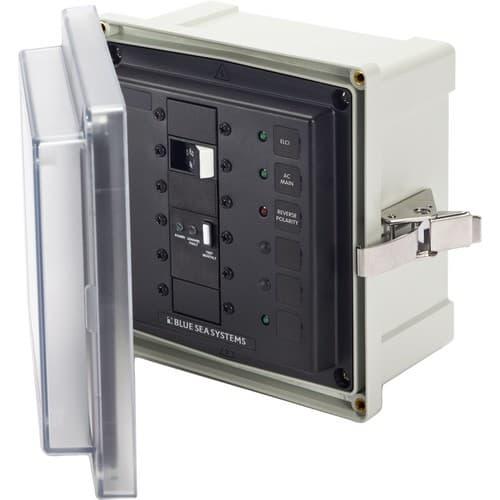

Panel enclosure for ELCI Main circuit breakers and otherlarge frame devices. Meets ABYC E-11 when used with anELCI Main circuit breaker and mounted within 10 feet ofthe shore power inlet
Features- Includes one 120/240V AC / 50A ELCI Main and one blank position
- Blank apertures for custom breaker loading
- Glass filled polycarbonate mounting box
- Clear cover allows easy view of circuit breaker status
- Overlapping cover for strength and increased gasket protection
- Oversized, formed in place seamless PUR gasket
- Easily removable stainless steel hinge pin for unobstructed installation
- Stainless steel latch secures cover without penetrating the enclosure
- Blank circuit positions accommodate Carling Technologies A- and C- Series Flat Rocker and ELCI Main circuit breakers
- Stainless steel mounting hardware included
- Includes waterproof glands
- LED lights for back lighting and ON indication
- Instructions
- Wiring Schematic
| Specifications | | Minimum Operating Temperature | -40 C |
| Maximum Operating Temperature | 85 C |
| Cover Screws and Hardware | 10-32 Stainless Steel |
| Enclosure Size | 6.0" x 6.0" x 4.0"(152mm x 152mm x 102mm) |
| Exterior Overall Dimensions | 7.6" x 7.4" x 4.7"(192mm x 188mm x 120mm) |
| Mounting Hardware | 1/4" Diameter, #12 (6 mm) |
| Weight | 6.95lb (3.15 kg) |
| Included | | Qty | PN | Product |
| 1 | 4206 | Basic AC Label Kit - 30 Black Square Labels |
| 2 | 3124 | SMS Enclosure Gland - PG7 for #14 to #10 Wire |
| 1 | 3125 | SMS Enclosure Gland PG16 |
| 2 | 3126 | SMS Enclosure Gland PG29 |
| 1 | 6520-0013 | AC MAIN |
| 1 | 6520-0360 | REVERSE POLARITY |
| 1 | 6520-0580 | ELCI |
| 1 | 3104 | C-Series ELCI Main Circuit Breaker - 120/240V AC 50A (MAIN) |
| 3 | 8034 | LED - 120V AC Green (ON Indicating) |
| 1 | 8066 | LED - 120V AC Red (Reverse Polarity) |
