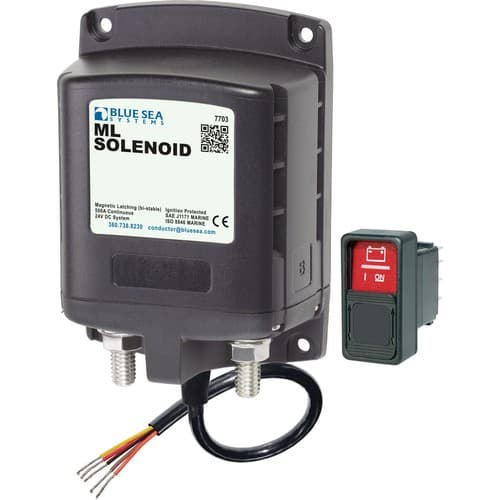

Blue Sea Systems, 7703, ML Solenoid - 24V DC 500A
The images shown are for illustration purposes only and may not be an exact representation of the product

Blue Sea Systems, 7703, ML Solenoid - 24V DC 500A

  • Model: 7703
  • GTIN: 00632085077037
  • Manufactured by: Blue Sea Systems
  • Condition: New
  • Estimated Delivery: 1 to 2 Weeks
  • Lead Time To Ship May Vary
Price:

$322.14 $247.80

Manufacturer Info

(image for) Blue Sea Systems
500 Amp magnetic latching(bi-stable) solenoid providesswitching under load wheremanual control is not required

Features
  • Includes ML-Series Remote Control Contura Switch 2145
  • 500 Ampere continuous rating for engine, inverter, house loads, and emergency battery combine
  • Magnetic latching draws no current in "ON" or "OFF" state, only draws current when changing state of switch
  • Silver alloy contacts provides high reliability for switching live loads
  • 3/8" -16 tin-plated copper studs for maximum conductivity and corrosion resistance
  • 7/8" (22mm) stud length accepts multiple cable terminals
  • Label recesses for circuit identification
  • Instructions
Specifications
Control Circuit ConnectionTinned Wire
Nominal Voltage24V DC
Manual ControlNo
Coil FunctionBi-Stable
Mounting#10
Amperage Operating Current continuous0A
Terminal Stud Torque140 in-lb (15.82 Nm)
Continuous Rating500A
Intermittent Rating700A (5 min)
Cranking Rating 30 sec1450A DC
Cable Size to Meet Ratings2x (4/0)
Switching Cycles100000
Terminal Ring Diameter Clearance1.18in (29.97 mm)
Terminal Stud Length0.875in (22.23 mm)
Terminal Stud Size3/8" - 16 (M10)
Weight1.75lb (0.79 kg)
Included
QtyPNProduct
12145SPDT Remote Control Contura Switch - (ON)-OFF-(ON)
Optional Accessories
9160ML Series Link Bus
1147Remote Control Panel
1148Remote Control Panel
