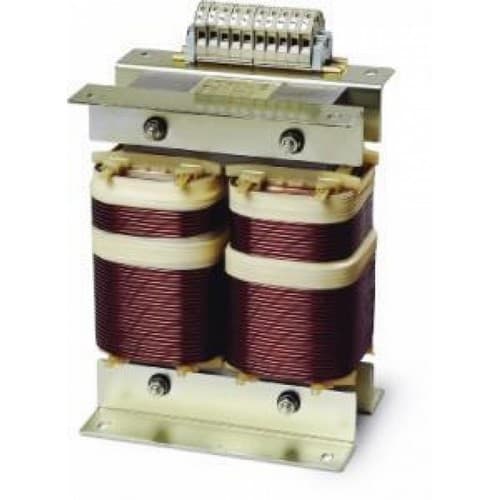

High-output E-core isolation transformer without casing, for self installation. The product is multi tap, meaning you can handle 120/230/240 V going in and out.
Mastervolt recommends to install the IVET heavy-duty isolation transformer with Soft Start. Soft Start suppresses the inrush current from the transformer and prevents the power fuse from blowing.
| General specifications |
| Output voltage (5%) | 120/220/240 V |
| Output frequency range | 45-65 Hz |
| Input voltage range | 110/220/240 V |
| Nominal input current (230 V) | 57 A |
| Input frequency range | 45-65 Hz |
| Efficiency | > 93 % |
| Power | 13.000 W |
| Dimensions, hxwxd | 490 x 320 x 230 mm19.3 x 12.6 x 9.1 inch |
| Weight | 90 kg198.4 lb |
| Technical specifications |
| Technology | E-core |
| Earth leakage switch | no |
| No-load power consumption | < 10 W |
| Temperature range (ambient temp.) | 0 C to 40 C, derating power > 40 C32 to 104 F |
| Relative humidity | max. 95% |
| Protection degree | IP00 |
| Cooling | natural cooling |
| Soft start | no |
| MasterBus compatible | no |
