The images shown are for illustration purposes only and may not be an exact representation of the product

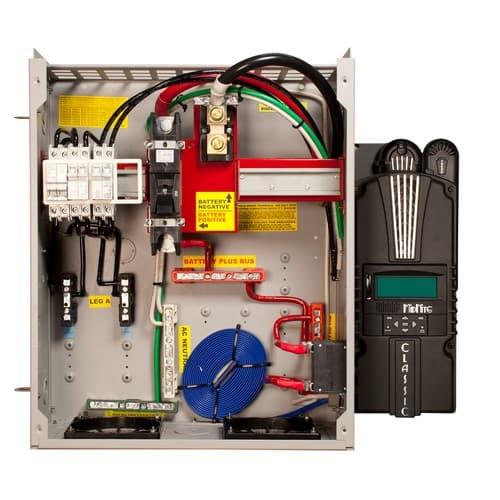

The MNE250SMA-OG-SINGLE The Off Grid Single is designed for a single Sunny Island off grid system. It includes the 60amp, 120vac Manual input/output bypass system along with separate 60amp, 120vac AC input and output breakers. Comes with a 250amp battery disconnect breaker and inverter cables. Pre-wired with AC input and output wiring.
Classic and Classic wiring do not come with this unit and are shown as an option only! NOTE: Classic charge controllers are sold separately. Master E-Panel for a single off-grid or battery backup 120VAC Sunny Island inverter system
Comes with - Environmental Rating - Type 1 (Indoor)
- 60amp, 120vac AC output/bypass assembly and independent 60amp
- 120vac AC input and output breakers

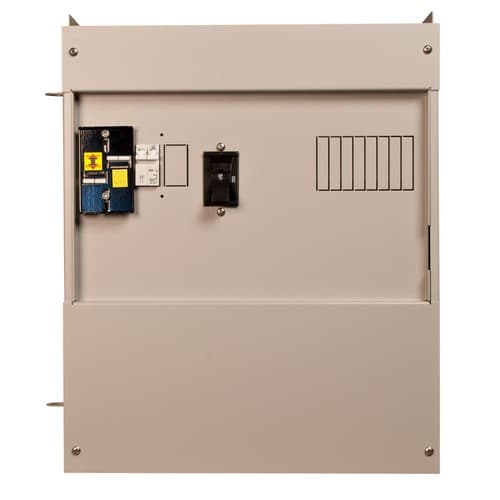

- 2 Extra spaces on the face to the Left of the main battery breaker for the white bodied (MNEACQZD) CBI Din Rail breakers
- 8 Extra spaces on the face to the Right of the main battery breaker for the black bodied (MNEAC or MNEPV) CBI Din Rail breakers
- 4 Spaces on the left side and 6 spaces on the right side of the chassis for the Panel mount 3/4 inch breakers (MNEDC)
- 500A/50mV shunt (MNSHUNT)
- Neutral and AC IN and OUT terminal busbars
- 250amp battery breaker with inverter cables
- AC wiring to inverter.
- SMA E-Panel Dim Drawing | Download
- SMA-E-Panel-Manual | Download
- Classic Simple Flow Diagram | Download
NOTE: A back plate (MNESMA-Short BP or MNESMA-Tall-BP) is recommended for the proper wiring alignment of the Sunny Island. - Warranty - 5 yrs.
- Listed by ETL for US & Canada
- Made in the USA
