Manufacturer Info

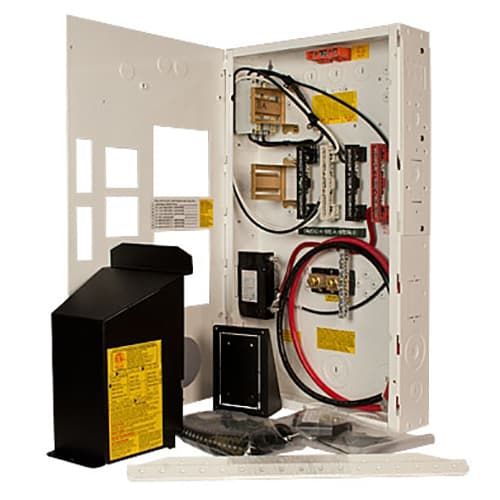

Stretched aluminum OB with FM/60/80/Classic mounting on the door. Comes standard with left hand door.
Smallest foot-print of any system available for an inverter, charge controler and balance of system components.
MNE125AL-PLUS-E For the export model use this model number: MNE125AL-PLUS-E
The export model is a 230V 50Hz AC model.
Does not come with a charge control bracket.
Smallest foot-print of any system available for an inverter, charge controler and balance of system components.
- Main Breaker Current Rating - 125A
- Number of spaces - 9
- Environmental Rating - Type 1 (Indoor)
- Max. Wire Size - 4/0
- Max. AC Voltage - 277VAC
- Max. DC Voltage - 300VDC
- Warranty - 5 yrs.
- Listed by ETL for US & Canada
- Made in the USA
- Outback Plus E-Panel | Download
- E-Panel Plus | Download
- E-Panel Manual | Download
- Classic Simple Flow Diagram | Download
- E-Panels Explained | Download
MNE125AL-PLUS-E For the export model use this model number: MNE125AL-PLUS-E
The export model is a 230V 50Hz AC model.
Does not come with a charge control bracket.
