Schneider Electric, RNW865101301, Conext XW+ Mini Power Distribution Panel

  • Model: RNW865101301
  • GTIN: 00785901584414
  • Manufactured by: Schneider Electric
  • Condition: New
  • Estimated Delivery: Dec 6th - Dec 12th
  • In Stock
  • Price: $1,002.25  $770.96
    Save time and money installing and integrating XW+ system

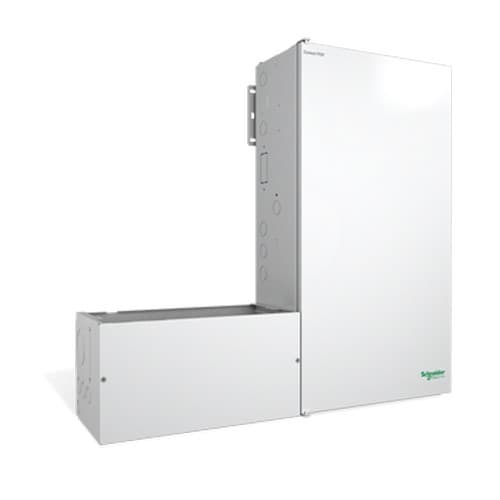

    The ConextTM XW+ Power Distribution Panels (XW+ PDP and Mini PDP) are factory-wired and labeled to support the integration of multiple Conext XW+ inverter/chargers and Conext MPPT Solar Charge Controllers with a single battery bank. The XW+ PDP and Mini PDP ships with breakers, bus bars and cables to install a single XW+ inverter/charger. With space to add wiring and breakers, a single XW+ PDP and Mini PDP supports one XW+ inverter/charger, a diesel generator and either a MPPT 80 600 or MPPT 60 150 Solar Charge Controller. The XW+ PDP and Mini PDP supports single-phase, split phase or three-phase installations. A field-reversible door and multiple conduit knockout entry points allow for the XW+ PDP and Mini PDP enclosure to be mounted and configured on either side of the inverter/charger.

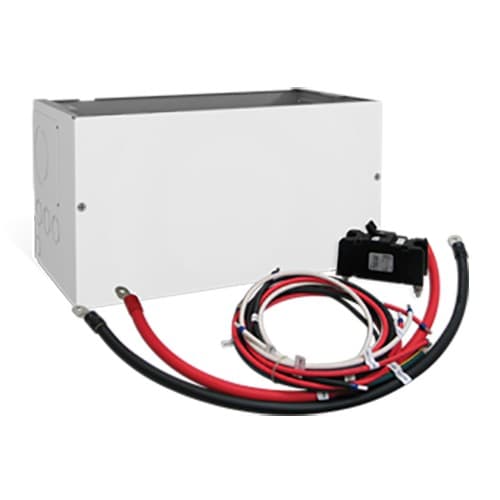

    XW+ Power Distribution Panels are designed to save significant time and money during installation, when compared to custom solutions. A mounting bracket and Conext XW+ Conduit Box are also supplied with each XW+ PDP and Mini PDP.

    Why choose Conext XW+ Power Distribution Panels

    Higher return on investment
    • Integrate multiple XW+ inverter chargers and MPPT Solar Charge Controllers with a single battery bank
    • Repeatable standard installation that saves time and money
    Flexible
    • Single-phase, split-phase or three phase systems
    • Multiple field configurable conduit entry points on the back, bottom, top and sides
    • DIN Rail mounting for QOU type and Multi-9 AC breakers
    Easy to service
    • Breaker configuration allows XW+ inverter/chargers to be AC bypassed for servicing

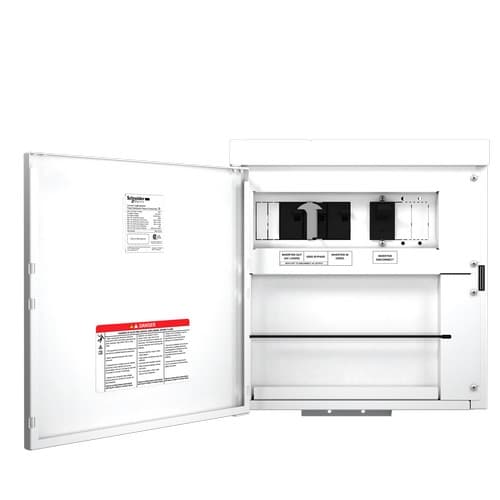

    • Field-reversible door panel allows for visual inspection
    Easy to install
    • Wall mount with included bracket
    • Add additional XW+ inverter chargers with Conext XW+ connection kit
    • Product Specifications | Download
