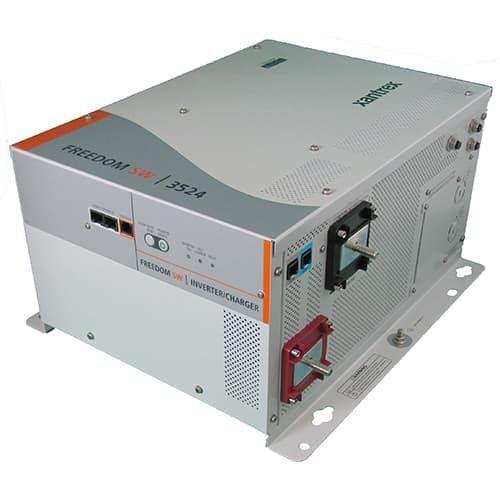

Xantrex, 815-3524-02, Freedom SW 24V 3400W-90A (230 VAC-50 HZ) Inverter Charger

  • Model: 815-3524-02
  • GTIN: 00715535899042
  • Manufactured by: Xantrex
  • Condition: New
  • Estimated Delivery: Jun 20th - Jun 26th
  • In Stock

$3,965.05 $3,050.04

Manufacturer Info

24V, 2500W & 3400W - 230 Vac / 50 Hz

Powerful. Configurable. Versatile...

Just like its North American 110Vac counterpart, the NEW Freedom SW 230Vac inverter/charger offers premium sine wave performance and efficient, multi-stage charging. The 2x continuous power surge rating provides necessary start-up power for demanding applications including inductive motor loads. Available in two 230Vac/50Hz, 24Vdc models, the Freedom SW offers PARALLEL stacking capability to enable twice-the-rated output. Both models can operate in tandem with a generator to temporarily assist power loads with large start-up demands such as air conditioners, water pumps etc. A Xanbus AGS must be installed in the system in order for this feature work. Both are compatible with optional accessories such as the System Control Panel (SCP) and the Automatic Generator Start (AGS).

The Freedom SW inverter/charger provides utility grade AC power to operate commonly used AC-powered electronics such as plasma television sets, microwaves, entertainment systems, computers, printers, power tools, refrigerators and much more.

Designed for a variety of mobile 24Vdc applications such as commercial, emergency and recreational vehicle, marine vessel, bus, construction and other heavy duty applications.

Product Features
  • Available in 2 models: 2500W with 65A charger, 3400W with 90A charger
  • Parallel stacking capability to double the inverter power output
  • Advanced configuration options for customized applications*
  • Built-in transfer switch automatically transfers between inverter power and incoming AC power
  • Power factor corrected, multi-stage charger for fast, efficient charging
  • Temperature compensated charging for a vareity of climate conditions
  • Ignition lockout feature helps prevent unnecessary battery drain when the alternator is not providing power**
  • Wide operating temperature range: -4F to 140F (-20C to 60C)
  • Conformal coated circuit boards for humid environments
  • Compatible with the Xanbus Automatic Generator Start*** (Part# 809-0915)
  • Meets CE (Europe), RCM (Australia)
  • Product Specifications | Download
  • Product Manual | Download
*A System Control Panel is required for all system configuration and setup
**When used with the remote panel
***Sold separately

Protection Features
  • Battery over-voltage and under-voltage protection
  • Over-temperature shutdown
  • Automatic overload protection
  • Short-circuit protection
  • Integrated, resettable AC breakers
Models Part number Input voltage AC output
Freedom SW 2524815-2524-0224VHardwire
Freedom SW 3524815-3524-0224VHardwire
Accessories Part number
System Control Panel809-0921
Automatic Generator Start809-0915
On/off Remote Panel808-9002
75' Network Cable809-0942
25' Network Cable809-0940
Conext ComBox Freedom SW809-0918
