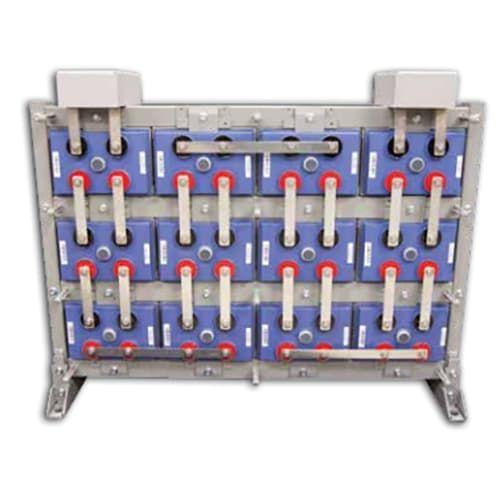

The EnergyCell RE high capacity battery family offers an ideal solution for large capacity Valved Regulated Lead Acid (VRLA) battery requirements. The EnergyCell RE high capacity battery's steel can (module) design concept, with its integral racking system, provides a cost effective battery system with a compact, quick and simple installation process.
The EnergyCell RE high capacity battery system's AGM technology incorporates an enhanced cell design with a superior racking system. The enhanced cell incorporates thicker positive plates for longer life. The welded/epoxy dual post seal design provides the highest integrity seal in the industry. The large copper post design also enhances the high rate performance.
The EnergyCell RE high capacity battery provides excellent performance and service life in grid-tied, grid-interactive and off-grid renewable energy and UPS solutions.
Product Highlights- Ideal for large capacity VRLA battery requirements
- 100% "Out-of-Box" initial battery capacity
- VRLA AGM Technology: Low maintenance, no watering required
- EnergyCell RE High-Capacity Spec Sheet | Download
- Energy Storage Solutions by Application | Download
- EnergyCell RE High Capacity Owners manual | Download
| | 800RE | 1100RE | 1300RE | 1600RE | 2000RE | 2200RE | 2700RE |
|---|
| Nominal Voltage Per Cell | 2V | 2V | 2V | 2V | 2V | 2V | 2V |
| Capacity 20Hr Rate (1.75VPC) | 672 | 960 | 1148 | 1378 | 1716 | 1836 | 2288 |
| Capacity 100Hr Rate (1.75VPC) | 810 | 1150 | 1340 | 1600 | 2070 | 2140 | 2770 |
| Watts Per Cell 15min Rate (1.67VPC) | 1230 | 1757 | 1995 | 2394 | 3071 | 3192 | 4094 |
| Cycle Life 50% DOD (25C) | 1800 Cycles | 1800 Cycles | 1800 Cycles | 1800 Cycles | 1800 Cycles | 1800 Cycles | 1800 Cycles |
| Optimal Operating Temperature Range | 23 to 26C | 23 to 26C | 23 to 26C | 23 to 26C | 23 to 26C | 23 to 26C | 23 to 26C |
| OCV Per Cell Limit* | 2.05 | 2.05 | 2.05 | 2.05 | 2.05 | 2.05 | 2.05 |
| Initial Charge Voltage Per Cell** | 2.27 | 2.27 | 2.27 | 2.27 | 2.27 | 2.27 | 2.27 |
| Float Voltage Per Cell (25C) | 2.25 | 2.25 | 2.25 | 2.25 | 2.25 | 2.25 | 2.25 |
| Float Voltage Per Cell (35C) | 2.21 | 2.21 | 2.21 | 2.21 | 2.21 | 2.21 | 2.21 |
| Equalize Voltage Per Cell (21 to 32C) | 2.32 | 2.32 | 2.32 | 2.32 | 2.32 | 2.32 | 2.32 |
| Maximum Charge Current (A) | 148.75 | 212.5 | 250 | 300 | 375 | 400 | 500 |
| Shelf Life (25C) | 6 months | 6 months | 6 months | 6 months | 6 months | 6 months | 6 months |
| Short Circuit Current (A) | 4728 | 6748 | 7722 | 9267 | 12411 | 12337 | 16548 |
| Internal Resistance (micro ) | 441 | 309 | 270 | 225 | 168 | 169 | 126 |
| Terminal Torque (Intercell Connects) | 88 in-lbs |
| Hardware Specification (Intercell Connects) | M8 bolt, lock and flat washer |
| Weight Per Cell (lb) | 114.3 | 162.3 | 188.3 | 222.3 | 272.3 | 290.3 | 358.3 |
| Dimensions Per Cell L x W x H (in) | 21.8 x 11.9 x 6.5 | 21.8 x 8.4 x 6.5 | 24.5 x 8.4 x 6.5 | 24.5 x 9.9 x 6.5 | 23.5 x 9.9 x 8.9 | 24.5 x 12.9 x 6.5 | 23.5 x 12.9 x 8.9 |
