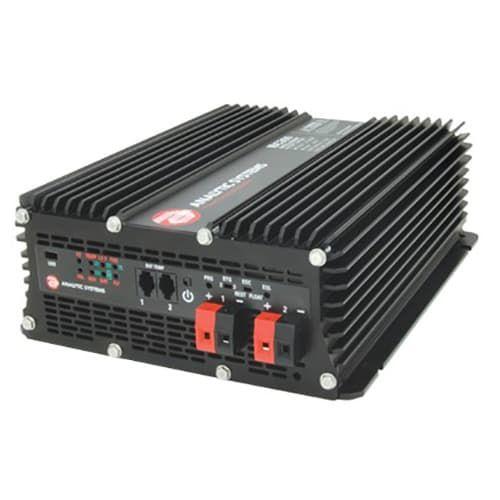

The images shown are for illustration purposes only and may not be an exact representation of the product

Analytic Systems, IBC320-24, 10A, 24 Volt, 85-265VAC PFC Input, 2 Bank, AC/DC Battery Charger, 2 Bank

  • Model: IBC320-24
  • Manufactured by: Analytic Systems
  • Condition: New
  • Estimated Delivery: 2 to 3 Weeks
  • Built to Order - This Product Cannot Be Cancelled Once Order Is Placed
Price:

$963.50 $741.15

Manufacturer Info

The IBC320 Intelligent Battery Charger provides up to 300 watts to charge a 12, 24, 36 or 48 volt, one or two bank battery system (batteries must share a common ground). The charger is preprogrammed for Flooded (traditional Lead Acid), AGM (Absorbed Glass Mat Lead Acid) and Gel or VRLA (Valve Regulated Lead Acid). It also has a 4th custom program where all charging parameters can be adjusted to suit a particular type of battery including bulk charging current, absorption voltage, float voltage, temperature compensation and more.

This charger uses advanced Power Factor Correction circuitry on the AC input so it will work from any standard AC voltage anywhere in the world. LLC Resonant Converter Technology allows Zero Voltage/Zero Current switching on the Primary or high voltage side of the main power transformer, and Active Rectification on the Secondary or Low Voltage side offers maximum efficiency and lowest Electromagnetic Interference (EMI) to ensure that the IBC320 does not disturb sensitive voice or data RF communication equipment.

Eight dual color LEDs and audible alert clearly indicate charging levels and stages as well as indicating faults with either the charger or the batteries. The PowerWizard software that is free to download adds advanced charging algorithm programming and charger monitoring as well as a graphing function through the built in USB port. Safety features include charger and battery over temperature shutdown, current limiting, short circuit protection, input under voltage shutdown and output over-voltage protection, all with automatic recovery. We are so confident that you will get years of reliable service from this Intelligent Battery Charger that we have backed it with a Five Year Warranty!

Features
  • State of the art Digital Signal Processor
  • LLC resonant converter technology
  • Synchronous Rectification
  • Worldwide Universal AC Input with PFC
  • Advanced Charging Algorithms
  • Programmable from front panel
  • Includes ‘PowerWizard’ software for advanced programming through standard USB port
  • Military-Grade extrusion ensures a high tolerance for shock and vibration
  • High Efficiency
  • Ultra-quiet low EMI operation
  • Can be permanently connected to batteries
  • Optional Dry contact output fail relay
  • Optional Custom Battery Voltages
  • User selectable 2 or 3 stage charging profile
  • User selectable Float or Rest ‘End of Charge’
  • Temperature compensated charging
  • Battery Over-temperature shutdown & recovery
  • Charger Over-temperature shutdown& recovery
  • Audible & visual indicators for operation and errors
  • Output short circuit protection
  • Output over-voltage protection
  • Inrush Current Limiting
  • Worldwide AC Input
  • Five Year warranty
  • Product Specifications | Download
  • Product Manual | Download
Applications
  • Marine
  • (Commercial and Recreational)
  • Industrial
  • Military and DHS
  • Electric Utilities and Substations
  • OEM Applications
  • Emergency Power Backup (UPS)
  • Security Systems
Volts85 - 265VAC, 1 Phase, 45 - 65 Hz
Current (max)*4 Amps w/ Inrush Protection
Input FuseAGC 5 Amp
Power Factor>0.99 at Full Load
Efficiency>90% at Full Load
*Maximum Input Current Specified at 85 VAC
Nominal Voltage12 VDC24 VDC32 VDC48 VDC
Voltage Range **12.0 - 15.5 VDC24.0 - 31.0 VDC36.0 - 46.5 VDC48.0 - 62.0 VDC
Output Current20 Amps10 Amps6.8 Amps5 Amps
Recommended Battery Amp-Hours100503725
Charging Stages2 or 3 stage user selectable
End of ChargeFloat or Rest user selectable
**Actual Output Voltage determined by User Settings or by Charger Firmware
Dimensions9.5"/24.1cm Long x 8.0"/20.3cm Wide x 3.25"/8.3cm High
Clearance1.0" / 2.5cm all around
Weight6.2 lb / 2.8 kg
Material and FinishMarine Grade Black Anodized Aluminum with 18-8 Stainless Fasteners
MountingWall or Shelf Mount
ConnectionsIntegrated Color Coded Terminal Blocks
Operating Temperature Range-25C to +40C (-40C to +55C Optional)
Storage Temperature Range-55C to +85C
Humidity0 - 95% Relative Humidity (non-condensing)
VibrationBuilt to meet MIL810g
EmissionsBuilt to meet MIL461f
Isolation> 1500 VDC Input-Output, Input-Case, Output-Case
Audible NoiseNone
Duty CycleContinuous
WarrantyFive Years Parts and Labour
SafetyBuilt to meet ABS, CE, UL458 and CSA 22.2.107.1
